Fork bucket 310

for forklift truckstilting

Description

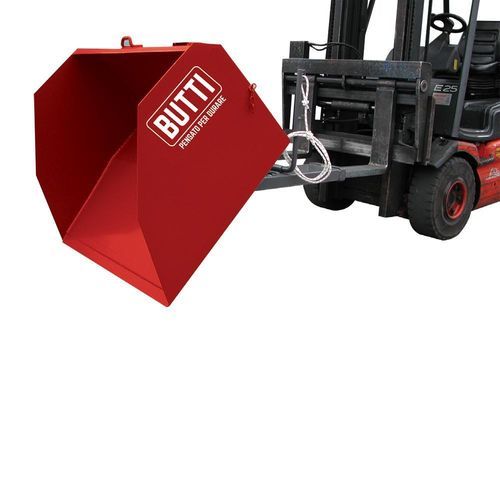

The sand bucket with automatic tipping is a forklift-mountable accessory designed for rapid handling of rubble, soil, sand and gravel (and bulk materials in general). It enables orderly collection, transport and discharge of materials on construction sites and in industrial environments, reducing manual handling and cycle times. The bucket is picked up with the forklift forks and emptied via a cable-operated tipping lever controllable from the operator seat, allowing tipping at various heights without the operator leaving the cabin. For safe operation, the bucket is prepared to be secured to the forklift with an anti-slip safety chain to reduce the risk of fork displacement during maneuvers.

Main advantages

• Automatic tipping for fast discharge of bulk materials
• Cable operation controllable from the operator seat: greater convenience and fewer operational risks
• Forklift-mountable for quick handling on site and in workshops
• Prepared for anti-slip safety chain (improved stability on the forks)
• Suitable for rubble, soil, sand, gravel and general debris

Applications

• Handling and discharge of sand, gravel and soil
• Collection and transport of rubble and debris
• Management of bulk materials in construction sites, warehouses and production areas

Optional on request
Hydraulic tipping system.

Sectors of application

• Construction sites
• Demolition and renovation
• Industry and production
• Warehousing and internal logistics
• Maintenance and inert material handling

Versions available (table)
Model | L (mm) | P1 (mm) | P2 (mm) | H (mm) | Tare (kg) | Full load weight (kg) | Capacity (kg) | Volume (l) | A (mm) | B (mm) | C (mm)
310 | 1200 | 1450 | 950 | 700 | 170 | 1070 | 900 | 500 | 220 | 55 | 670

Technical specifications

• Model: 310
• Dimensions (mm): L 1200, P1 1450, P2 950, H 700
• Tare: 170 kg
• Full load weight: 1070 kg
• Capacity: 900 kg
• Volume: 500 l
• Fork pocket inner dimensions (mm): A 220, B 55, C 670
• Forklift-mountable
• Discharge by tipping operated by cable controllable from the operator seat
• Prepared for anti-slip safety chain
• Optional: hydraulic tipping system
• CE conformity
