Lifting holder 60 series

heavy-dutyrigidindustrial

Overview
The construction bucket lifters are professional support frames designed to handle and lift containers used in building operations. They enable more orderly load management during crane and lifting-system operations, improving site workflow and reducing the risk of unstable handling.

Range

• Multi-bucket lifters for hoists, for lifting multiple construction buckets simultaneously.
• Square mastello lifter "Milan", dedicated to lifting the square mastello for rubble collection (model 99C337).

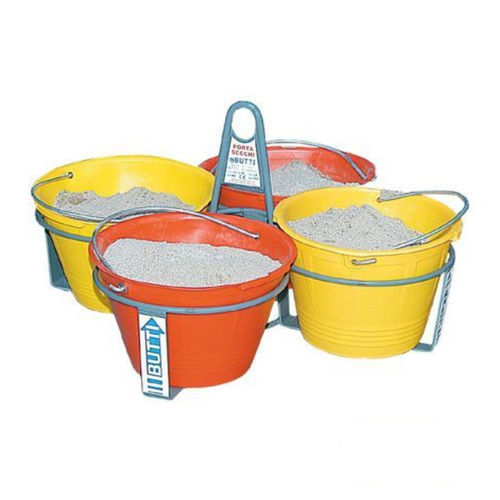

Bucket lifters for hoists (2/3/4 positions)
Supports for lifting construction buckets containing materials such as mortar, sand, lime, liquids and rubble in an organized and rapid way.

• Available models: 602 – 2-position bucket lifter; 603 – 3-position bucket lifter; 604 – 4-position bucket lifter.

Uses

• Lifting mortar and mixes to height
• Handling sand, lime and aggregates
• Transporting liquids for construction tasks
• Organized management of buckets on scaffolds, with cranes/winches

Square mastello lifter "Milan"
Specific support to insert and lift the black square mastello 99C337, designed for collection, transport and storage of rubble.

• Durable and capacious container for rubble
• Square shape: optimizes space in transport and storage
• Robust structure suitable for high loads on site

Application sectors
Construction sites, renovations, demolitions, construction companies, civil and industrial building works, extraordinary maintenance, logistics and material handling on site.

Versions available (table)
Model | Bucket positions | Dimensions L x H (mm) | Tare (kg) | Capacity (kg) | Weight at full load (kg)
601Q | 1 | 440 x 700 | 8 | 100 | 108
602 | 2 | 820 x 438 | 5 | 75 | 80
603 | 3 | 760 x 438 | 7 | 112 | 119
604 | 4 | 820 x 438 | 8 | 150 | 158

Characteristics / technical specifications

• Models: 601Q, 602, 603, 604
• Applications: lifting and handling of mortar, sand, lime, liquids and rubble
• Compatible mastello: 99C337 (Square mastello lifter "Milan")
• Dimensions and capacity by model: 601Q L=440 mm H=700 mm, tare 8 kg, capacity 100 kg, weight at full load 108 kg; 602 L=820 mm H=438 mm, tare 5 kg, capacity 75 kg, weight at full load 80 kg; 603 L=760 mm H=438 mm, tare 7 kg, capacity 112 kg, weight at full load 119 kg; 604 L=820 mm H=438 mm, tare 8 kg, capacity 150 kg, weight at full load 158 kg
• Structure: robust, suitable for high site loads
