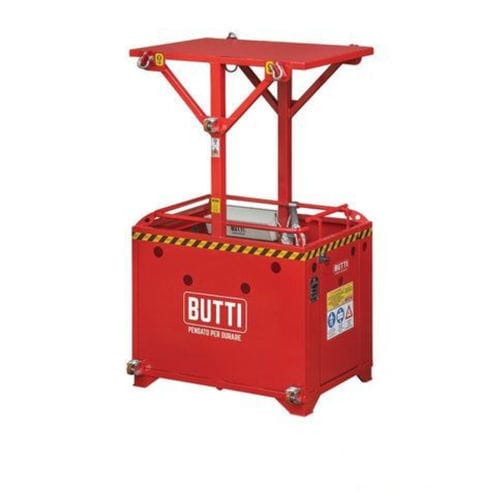

Handling basket 367 series

with metal framecylindrical

Description Lifting baskets are designed for crane-assisted lifting and work at height of personnel, providing controlled and stable transfer during operations. They are intended for maintenance, construction, refurbishment and emergency interventions. All models feature a sheet-metal structure engineered to reduce entanglement risk, protect operators and internal equipment, and ensure safe handling during lifts.

Regulatory compliance and safety

• UNI EN 14502-1:2010 (Lifting appliances – Equipment for lifting persons)
• Italian Legislative Decree 09/04/2008 n. 81, Annex VI, point 3.1.4

Available models

• 367AR – Galvanized lifting basket for 1 person: round galvanized basket designed for crane lifting of one person; compact and suitable for outdoor use.
• 367BR – Galvanized lifting basket for 2 persons: round galvanized version for safe lifting of two persons, for paired operations.
• 367 – Standard lifting basket for 4 persons: sheet-metal basket for continuous operations, equipped with 4 lifting points positioned on the two long sides of the roof; side entry door.
• 367TS – Standard lifting basket for 4 persons (removable roof): version with removable roof for operational versatility; same structural and safety equipment as the standard model; front entry door.
• 367L – Standard lifting basket for 5 persons: designed for five persons, sheet-metal walls to minimise entanglement risk; fitted with 4 lifting points on the long sides of the roof; side entry door.
• 367F – Lifting basket for emergency response: configured for emergency work at height (e.g. seismic events); sized to carry 4 standing persons and 1 person on stretcher (stretcher available on request); structure with 4 lifting points to reduce uncontrolled oscillation; side entry door.

Dimensions and capacity (mm / kg)
Model | L | W/Ø | H1 | H2 | Weight at full load (kg) | Capacity (kg)
367AR | - | 660 | 2400 | 1150 | 230 | 150
367BR | - | 950 | 2400 | 1150 | 438 | 300
367 | 1400 | 1000 | 2400 | 1280 | 812 | 500
367TS | 1400 | 1000 | 2400 | 1280 | 845 | 500
367L | 2500 | 1400 | 2400 | 1280 | 1155 | 600
367F | 2500 | 1400 | 2400 | 1280 | 1155 | 600

Features / technical specifications

• Structure: sheet metal designed for safety (some versions galvanized)
• Use: crane lifting of personnel (maintenance, construction, emergency response, civil protection)
• Equipment: lifting points (4 hooks on standard models), internal safety lanyard to secure operators
• Design: walls and structure engineered to reduce entanglement risk and protect operators and equipment
• Specific versions: removable roof (367TS), emergency version with stretcher capacity (367F)
• Compliance: designed to meet essential safety requirements indicated in the standards above
