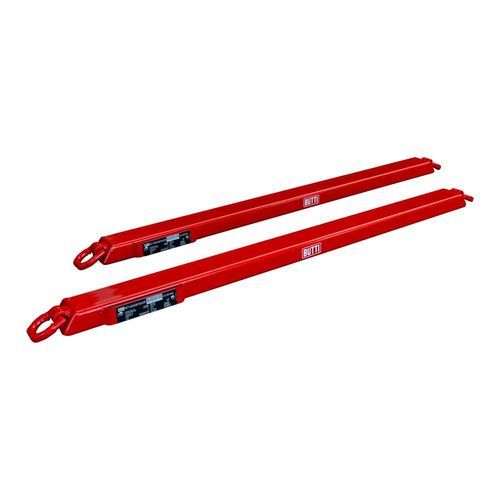

Cross lifting beam 849AS10

industrialfor the construction industryfor flat loads

Product description
The pair of lifting crossbeams is designed for safe and efficient handling of pallets in industrial and logistics environments. With a combined load capacity of 2000 kg (pair), model 849AS10 is suitable for lifting substantial loads using a crane or other lifting device. Manufactured from robust steel and equipped with forged swivel grip hooks, the crossbeams are intended for continuous professional use, ensuring stability and long service life.

Main features

• Load capacity (pair): 2000 kg
• Forged swivel grip hooks
• Robust steel construction
• Suitable for safe pallet lifting
• Designed for professional/industrial use

Functional details
The swivel forged hooks facilitate insertion under pallets and allow smoother, more precise engagement, improving manoeuvrability during lifting and reducing the risk of sudden load movement.

Benefits

• Improved efficiency in handling operations
• Stable and controlled lifting
• Reduced risk of accidents
• Long operational life

Applications

• Crane-assisted pallet handling
• Internal logistics and warehouses
• Production departments and industrial areas
• Construction sites and plants

Fields of application
industry, logistics, construction, prefabrication, maintenance.

Versions available (table)
Model | L (mm) | P (mm) | H (mm) | Tare (kg) | Capacity (pair) (kg)
849AS10 | 1300 | 80 | 50 | 20 | 2000

Technical specifications

• Model: 849AS10
• Dimensions (L x P x H): 1300 mm x 80 mm x 50 mm
• Tare: 20 kg
• Load capacity (pair): 2000 kg
• Swivel forged grip hooks for easier engagement under pallets
• Material: steel
• Intended use: continuous professional use in industrial/logistics environments
• CE conformity
