Hydraulic torque wrench SDTW13/4"1"2 1/2"
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Drive size
- 1", 3/4", 1 1/2", 2 1/2"
- Other characteristics
- for heavy-duty applications, compact, square drive, ATEX, steel, aluminium
- Torque
Max.: 74,441 Nm
(54,904.864 ft.lb)Min.: 194 Nm
(143.0871 ft.lb)- Weight
Max.: 68 kg
(149.914 lb)Min.: 3 kg
(6.614 lb)
Description

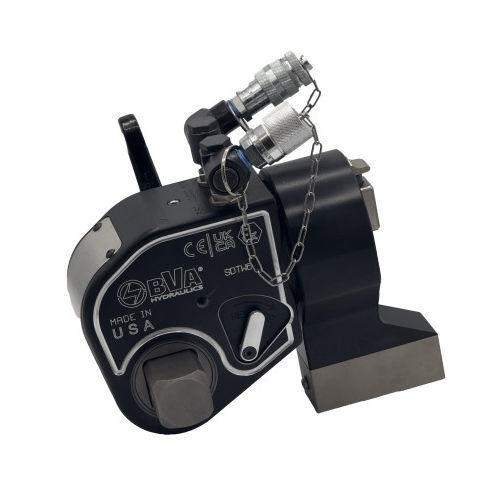

¾" Square Drive Hydraulic Torque Wrench with swivel connections even under pressure.
With a force of 1382Ft.lbs / 1874Nm at 10K PSI, 700 bar.
Every tool comes in Pelican Case for optimal protection.
- Category: Tools
- Tools Type: Torque Wrench
Technical specifications
- Material: Aluminum / Steel
- Weight: 10.9 lbs
- Overall Length: 5.25 in
- Square Drive: ¾ in.
- Nominal Torque Rated At: 10,000 psi / 700 bar
- Maximal Torque Output (Ft.lbs): 1382 Ft.lbs
- Maximal Torque Output (Nm): 1874 Nm
- Minimum Torque Rated At: 1000 psi / 70 bar
- Minimal Torque Output (Ft.lbs): 143 Ft.lbs
- Minimal Torque Output (Nm): 194 Nm
