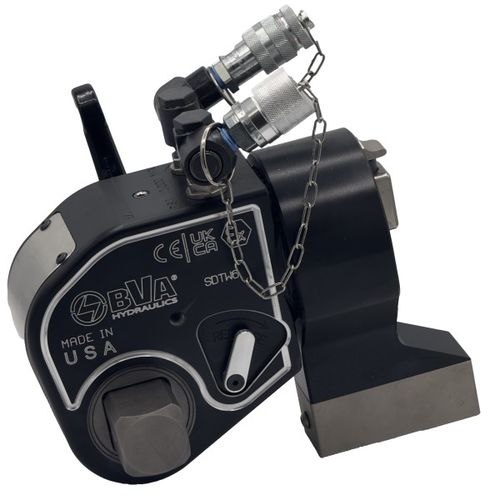

Hydraulic torque wrench SDTW20

2 1/2"steelaluminium

Product Overview
2½" square-drive hydraulic torque wrench with swivel connections that rotate under pressure, designed for high-torque industrial bolting.
Provides 17,934 ft·lb (24,315 Nm) at 10,000 psi (700 bar).
Each tool is supplied in a Pelican case for optimal protection.

Technical Highlights

• Model: SDTW20
• Square drive: 2½"
• Rated torque: 17,934 ft·lb / 24,315 Nm (at 10,000 psi / 700 bar)
• Nominal rated pressure: 10,000 psi / 700 bar
• Minimum rated pressure: 1,000 psi / 70 bar
• Material: Aluminum / Steel
• Weight: 75 lbs
• Overall length: 11.115 in
• Includes: Pelican case

Basic Information

• Category: Torque and tension tools
• Tool type: Torque wrench
• UPC: (not specified)

Applications & Use

• High-torque bolting (flanges, structural assemblies)
• Industrial maintenance and overhaul
• Heavy equipment assembly
• Situations requiring controlled torque at high pressure

Ordering & Support

• Reference: SDTW20
• Delivered with protective Pelican case
• Contact sales for availability, calibration and spare parts
