Hydraulic torque wrench SDTW6

1 1/2"steelaluminium

Product overview

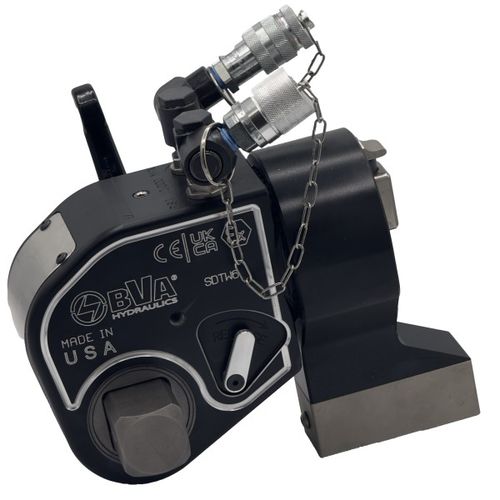

SDTW6 1½" square drive hydraulic torque wrench with swivel connections that operate under pressure.
Delivers 5110 ft·lb (6928 Nm) at 10,000 psi / 700 bar.
Supplied in a Pelican Case for transport and protection.

Additional information

• Square Drive: 1½"
• Swivel connections operate under pressure
• Includes Pelican Case for protection

Technical specifications (table)
Material: Aluminum / Steel
Weight: 21 lbs (9.5 kg)
Overall Length: 7.8 in (198 mm)
Square Drive: 1½"
Nominal Torque Rated At: 10,000 psi / 700 bar
Minimum Torque Rated At: 1,000 psi / 70 bar
Nominal torque output: 5110 ft·lb / 6928 Nm at 10,000 psi / 700 bar.

Specifications

• Material: Aluminum / Steel
• Weight: 21 lbs (9.5 kg)
• Overall Length: 7.8 in (198 mm)
• Square Drive: 1½"
• Nominal Torque Rated At: 10,000 psi / 700 bar
• Minimum Torque Rated At: 1,000 psi / 70 bar
• Nominal torque output: 5110 ft·lb / 6928 Nm at 10,000 psi / 700 bar
