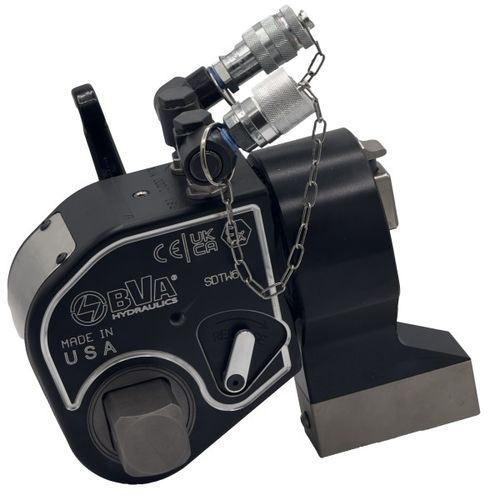

Hydraulic torque wrench SDTW452 1/2"steelaluminium
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Drive size
- 2 1/2"
- Other characteristics
- square drive, steel, aluminium
- Length
12.6 in
- Weight
150 lb
(68.039 kg)
Description
Overview
2½" square drive hydraulic torque wrench with swivel connections designed to operate under pressure.
Delivers 46,631 Ft/Lbs (63,223 Nm) at 10,000 PSI (700 bar).
Each tool is supplied in a Pelican Case for optimal protection and transport.
Product classification
Technical table (SDTW45)
Material: Aluminum / Steel
Weight: 150 lbs
Overall Length: 12.6 in
Square Drive: 2½"
Nominal Torque Rated At: 10,000 psi / 700 bar
Minimum Torque Rated At: 1,000 psi / 70 bar
Features / technical specifications
2½" square drive hydraulic torque wrench with swivel connections designed to operate under pressure.
Delivers 46,631 Ft/Lbs (63,223 Nm) at 10,000 PSI (700 bar).
Each tool is supplied in a Pelican Case for optimal protection and transport.
Product classification
- Category: Torque and Tension Tools
- Tools Type: Torque Wrench
Technical table (SDTW45)
Material: Aluminum / Steel
Weight: 150 lbs
Overall Length: 12.6 in
Square Drive: 2½"
Nominal Torque Rated At: 10,000 psi / 700 bar
Minimum Torque Rated At: 1,000 psi / 70 bar
Features / technical specifications
- Model: SDTW45
- Square Drive: 2½"
- Maximum Force / Torque: 46,631 Ft/Lbs (63,223 Nm) at 10,000 PSI (700 bar)
- Nominal Torque Rated At: 10,000 psi / 700 bar
- Minimum Torque Rated At: 1,000 psi / 70 bar
- Construction: Aluminum / Steel
- Weight: 150 lbs
- Overall Length: 12.6 inches
- Swivel connections that operate under pressure
- Supplied in Pelican Case for protection
- Category: Torque and Tension Tools; Tools Type: Torque Wrench
