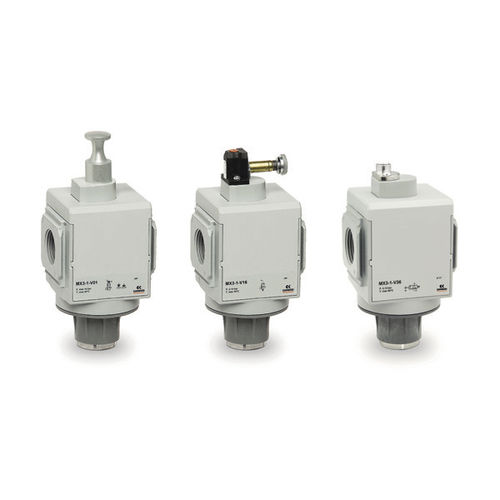

Spool pneumatic directional control valve MX series
pneumatically-operatedelectrically-operatedmanual

spool pneumatic directional control valve
spool pneumatic directional control valve
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
pneumatically-operated, electrically-operated, manual
Ports/positions
3/2-way
Other characteristics
aluminum, compact, modular
Flow rate

6,000 l/min, 9,200 l/min (1,585 us gal/min)

Operating pressure

Min.: -800 mbar (-12 psi)

Max.: 10,000 mbar (145 psi)

Description

These units are made with in-line wall-mounted bodies which are fixed by clamps. They can work from -5 to 50 degrees Celsius at a pressure of up to 16 bars. It can also work at 5 - 60 degrees Celsius at up to 10 bars. The dew point in the fluid will be less than 2 degrees at its minimum working temperature. This is a spool-type compact valve with modular construction. It uses a nominal exhaust flow at 6 bars with support for 6000 Nl/min or 9200 Nl/min depending on the unit in use. This uses compressed air and offers a range of options with differing pressure ranges, from the manual valve at 0.8-10 bar, through the electropneumatic valve at 2-10 bar to the servopilot or pneumatic valve at 0.8-10 bar. The pilot is set at 2-10 bar.

Catalogs

No catalogs are available for this product.

See all of CAMOZZI AUTOMATION‘s catalogs
