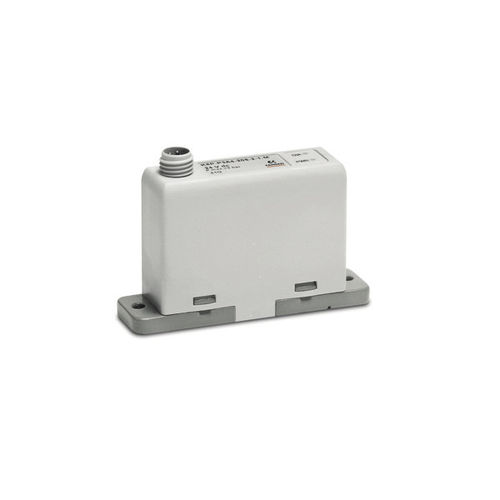

Proportional pressure regulator K8P series
for compressed airmembranesingle-stage

proportional pressure regulator
proportional pressure regulator
Add to favorites
Compare this product


Characteristics

Product
for compressed air
Technology
membrane
Number of stages
single-stage
Output signal
analog output
Applications
industrial
Other characteristics
compact, high-precision, miniature, proportional, high-performance
Pressure

Max.: 10,000 mbar (145.04 psi)

Min.: 150 mbar (2.18 psi)

Flow

6 l/min, 12 l/min (1.59 us gal/min)

Description

This product uses fluids as inert gas and has a regulated pressure between .5 ÷ 10 bar 0.15 ÷ 3 bar, with maximum inlet pressure of 11 bar (0.5 ÷ 10 bar) 4 bar (0.15 ÷ 3 bar). The unit has analogical input of 0-10 V DC 4-20 mA Ripple ≤ 0,2% and output of 0.5 - 9.5 V. maximum flow for inlet P 10 bar regulated P 3 bar 6 l/min and regulated P6 bar 12l/min. The supply is 24 V - ~1 W and function 3/2 NC, Linearity of ≤ ± 1% FS, hysteresis- ±0,5% FS, repeatability of ±0.5% FS. The minimal set point change is 50 mV => 50 mB (10 bar) - 100mV => 30 mB (3 bar) with electrical connection of M8 4 Pin (Male).
