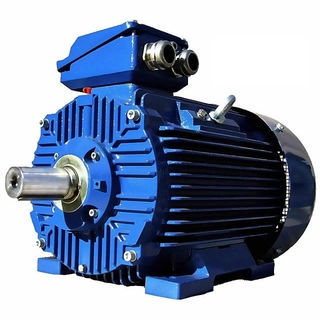

Induction motor 3SIE80-2AAC400 V380 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, AC
- Voltage
- 400 V, 380 V, 460 V, 220 V, 265 V
- Configuration
- aluminium, squirrel-cage rotor
- Protection class
- IP55, IP54, dust-proof, antispark
- Efficiency classes
- IE3
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial, for pump, for conveyors, for fans, for the chemical industry, for cranes
- Other characteristics
- IEC, low-noise, low-vibration
- Power
750 W
(1.02 hp)- Intensity
1.7 A, 2.95 A
- Torque
2.48 Nm
(1.829154 ft.lb)- Rotational speed
2,890 rpm
(18,158.4055 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 4.2
Winding connection ∆/Y
Starting current ratio [ 7.5
Frequency [Hz] 50
Efficiency at 1/4 of full load [
Efficiency at 2/4 of full load 74.6 %
Rated output [HP] 1.0
Efficiency at 3/4 of full load 79.0 %
Service factor [1.0
Efficiency at rated (full) load 82.0 %
Duty S1
Efficiency at 5/4 of full load [
Power factor at 1/4 of full load [
Power factor at 2/4 of full load [ 0.55
Power factor at 3/4 of full load [0.68
Power factor at rated (full) load [ 0.79
Starting torque ratio [4.0
Power factor at 5/4 of full load [
Sound pressure level [dB] 70
Frame size 80
Sound power level [dB] 77
Terminal box position top
Starting method DOL or Y/∆
Possibility of terminal box rotation yes
Insulation class F
Bearing on D-side 62042Z
Frequency converter supply yes
Bearing on ND-side 62042Z
