Induction motor 3SIE100L2
AC400 V380 V

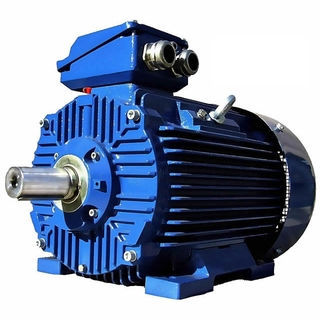

Induction motor - 3SIE100L2 - Cantoni Motor - AC / 400 V / 380 V
Induction motor - 3SIE100L2 - Cantoni Motor - AC / 400 V / 380 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, AC
Voltage
400 V, 380 V, 460 V, 220 V, 265 V, 690 V, 660 V, 795 V
Configuration
aluminium, squirrel-cage rotor
Protection class
IP55, dust-proof, antispark
Efficiency classes
IE3
Number of poles
2-pole
Cooling mechanism
IC411
Applications
industrial, for conveyors, for fans, for the chemical industry, for cranes, for washing machines
Other characteristics
IEC, low-noise, low-vibration, standard
Power

3 kW
(4.08 hp)

Intensity

5.8 A, 10.5 A

Torque

9.8 Nm
(7.228109 ft.lb)

Rotational speed

2,915 rpm
(18,315.4852 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 4.1 Winding connection ∆/Y Starting current ratio [ 8.5 Frequency [Hz] 50 Efficiency at 1/4 of full load Efficiency at 2/4 of full load [ 86.2 % Rated output [HP] 4.0 Efficiency at 3/4 of full load [ 87.7 % Service factor [ 1.0 Efficiency at rated (full) load [ 87.1 % Duty S1 Efficiency at 5/4 of full load Power factor at 1/4 of full load Power factor at 2/4 of full load [ 0.65 Power factor at 3/4 of full load [ 0.78 Power factor at rated (full) load [ 0.85 Starting torque ratio [ 3.1 Power factor at 5/4 of full load Sound pressure level [dB] 62 Frame size 100 Sound power level [dB] 74 Terminal box position top Starting method DOL or Y/∆ Possibility of terminal box rotation yes Insulation class F Bearing on D-side 62062Z Frequency converter supply yes Bearing on ND-side 62062Z

Catalogs

Go to the Cantoni Motor website for more information

Other Cantoni Motor products

IE3 Premium Efficiency 3SIE series
