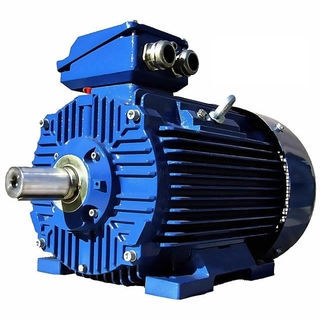

Three-phase motor 3SIE355ML4B
induction400V380 V

three-phase motor
three-phase motor
Add to favorites
Compare this product


Characteristics

AC/DC
three-phase
Type
induction
Voltage
400V, 380 V, 660 V
Protection class
IP55
Configuration
cast iron
Number of poles
4-pole
Other characteristics
IE3
Torque

1,682 Nm, 1,950 Nm, 2,020 Nm (1,240.5795 ft.lb)

Power

315 kW, 365 kW (428.281 hp)

Rotational speed

1,500 rpm, 1,800 rpm (9,424.78 rad.min-1)

Description

3SIE series – AC Three-phase IE3 Premium Efficiency motors with squirrel-cage rotor according to IEC60034-30-1 standard and Commission Regulation (CE) No 640/2009, 4/2014. Our IE3 Motors for general purpose are designed and produced to provide maximum benefits to the customer. Advantages of IE3 motors are low-vibration and noise level, durability, easy maintenance and long bearings life. Thanks to them, IE3 motors are a versatile solution used vastly in pumps, ventilators, conveyors in many industrial sectors, i.e. operational machines (turning, grinding, milling, drilling, boring, planning machines), cranes, ventilation systems, mixers, washing machines, pumps, conveyors, etc. Motors in IE3 efficiency class, following the new construction project "SIE", provide more efficient motors with the maximum level of compatibility on old machines. IE3 motor efficiency level is now minimum level in European Union and many countries in the world. IE3 efficiency is in conformity with IEC 60034 regulation. Available options on request: - brakes of our production - Thermal sensors and bimetals - Anticondensation heater - Various voltage and frequency - Insul. class H - IP56/IP65/IP66 - IM B3, B5, B14, B35, B34, V1, V5, V6 - Double shaft end - Vibration level B - Foreign cooling - Fixed/Roller/insulated bearings - Tropicalization TH/TA - UL/CSA - Adjusted for VSD/VFD Key benefits: - individual customization - reduction of operating cost - energy efficiency Ask for more from Cantoni Motor: 660 V/400V motor, antispark, low-vibration, motor for the chemical industry, multipole motor, 10-pole motor, IP66 motor, IP56 motor, aluminum motor, 690 V motor, 12-pole motor, dust-proof.
