Induction motor 3SIE132S2A
three-phase400 V380 V

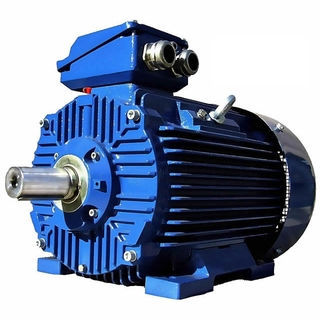

Induction motor - 3SIE132S2A - Cantoni Motor - three-phase / 400 V / 380 V
Induction motor - 3SIE132S2A - Cantoni Motor - three-phase / 400 V / 380 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
400 V, 380 V, 460 V, 220 V, 265 V, 690 V, 660 V, 795 V
Configuration
aluminium, squirrel-cage rotor
Protection class
IP55
Efficiency classes
IE3
Number of poles
2-pole
Applications
for pump, for conveyors, for fans, for cranes
Other characteristics
IEC, low-noise, low-vibration, standard
Power

5.5 kW
(7.48 hp)

Intensity

5.8 A, 10.5 A

Torque

17.9 Nm
(13.202362 ft.lb)

Rotational speed

2,940 rpm
(18,472.5648 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 3.6 Winding connection ∆/Y Starting current ratio [ 8.2 Frequency [Hz] 50 Efficiency at 1/4 of full load Efficiency at 2/4 of full load [ 87.7% Rated output [HP] 7.5 Efficiency at 3/4 of full load [ 89.2% Service factor [ 1.0 Efficiency at rated (full) load [ 89.2% Duty S1 Efficiency at 5/4 of full load Rated current [A] 10.0/5.8 Power factor at 1/4 of full load Power factor at 2/4 of full load [ 0.78 Rated speed [rpm] 2940 Power factor at 3/4 of full load [ 0.85 Rated torque [Nm] 17.9 Power factor at rated (full) load [ 0.89 Starting torque ratio [ 2.6 Power factor at 5/4 of full load Sound pressure level [dB] 68 Frame size 132 Sound power level [dB] 80 Terminal box position top Starting method DOL or Y/∆ Possibility of terminal box rotation yes
