Synchronous motor 3SIE90S2
AC400 V380 V

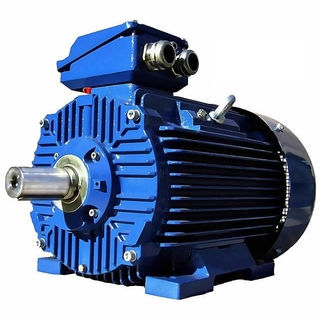

Synchronous motor - 3SIE90S2 - Cantoni Motor - AC / 400 V / 380 V
Synchronous motor - 3SIE90S2 - Cantoni Motor - AC / 400 V / 380 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, AC
Voltage
400 V, 380 V, 460 V, 220 V, 265 V, 690 V, 660 V, 795 V
Configuration
aluminium, squirrel-cage rotor
Protection class
IP55, dust-proof, antispark
Efficiency classes
IE3
Number of poles
2-pole
Cooling mechanism
IC411
Applications
for pump, for fans, for the chemical industry, for cranes, for conveyors
Other characteristics
IEC, low-noise, low-vibration, standard
Power

1.5 kW
(2.04 hp)

Intensity

3 A, 5.3 A

Torque

4.9 Nm
(3.614055 ft.lb)

Rotational speed

2,925 rpm
(18,378.317 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 3.5 Winding connection ∆/Y Starting current ratio [ 7.3 Frequency [Hz] 50 Efficiency at 1/4 of full load Efficiency at 2/4 of full load [ 82.7 % Rated output [HP] 2.0 Efficiency at 3/4 of full load [ 84.4 % Service factor [ 1.0 Efficiency at rated (full) load [ 84.2 % Duty S1 Efficiency at 5/4 of full load Power factor at 1/4 of full load Synchronous speed [rpm] 3000 Power factor at 2/4 of full load [ 0.64 Rated speed [rpm] 2925 Power factor at 3/4 of full load [ 0.77 Rated torque [Nm] 4.9 Power factor at rated (full) load [ 0.85 Starting torque ratio [ 2.4 Power factor at 5/4 of full load Sound pressure level [dB] 63 Frame size 90 Sound power level [dB] 75 Terminal box position top Starting method DOL or Y/∆ Possibility of terminal box rotation yes Insulation class F Bearing on D-side 62052Z Frequency converter supply yes Bearing on ND-side 62052Z

Catalogs

Go to the Cantoni Motor website for more information

Other Cantoni Motor products

IE3 Premium Efficiency 3SIE series
