Motor with slip ring SUg315M6A
synchronousthree-phase380 V

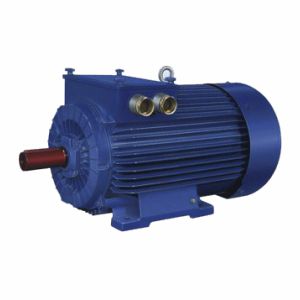

Motor with slip ring - SUg315M6A - Cantoni Motor - synchronous / three-phase / 380 V
Motor with slip ring - SUg315M6A - Cantoni Motor - synchronous / three-phase / 380 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
380 V
Configuration
cast iron, with slip ring
Protection class
IP55
Number of poles
6-pole
Cooling mechanism
IC411
Other characteristics
high-inertia, IEC
Power

90 kW
(122.37 hp)

Intensity

170 A

Torque

881 Nm
(649.792254 ft.lb)

Rotational speed

976 rpm
(6,132.3889 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 3.5 Winding connection ∆ Frequency [Hz] 50 Rated output [HP] 120 Service factor [ 1.0 Efficiency at rated (full) load [ 92.4 Duty S1 Synchronous speed [rpm] 1000 Power factor at rated (full) load [ 0.87 Frame size 315 Terminal box position on right side Starting method DOL Possibility of terminal box rotation no Insulation class F Bearing on D-side NU320EM1 Frequency converter supply no Bearing on ND-side 6320C3 Mounting arrangement IMB3 Bearings regreasing yes
