Crane motor SUDg355L10A
synchronousthree-phase380 V

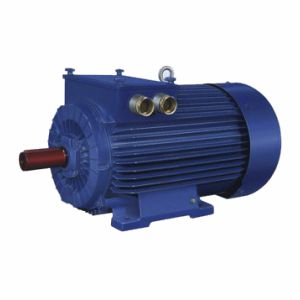

Crane motor - SUDg355L10A - Cantoni Motor - synchronous / three-phase / 380 V
Crane motor - SUDg355L10A - Cantoni Motor - synchronous / three-phase / 380 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
380 V
Configuration
cast iron, with slip ring
Protection class
IP54
Number of poles
10-pole
Cooling mechanism
IC411
Applications
for cranes
Other characteristics
IEC
Power

100 kW
(135.96 hp)

Intensity

216 A

Torque

1,635 Nm
(1,205.914114 ft.lb)

Rotational speed

584 rpm
(3,669.3802 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 2.3 Winding connection ∆ Frequency [Hz] 50 Rated output [HP] 135 Service factor [ 1.0 Efficiency at rated (full) load [ 92.6% Duty S3-40% Synchronous speed [rpm] 600 Power factor at rated (full) load [ 0.76 Frame size 355 Terminal box position on right side Starting method DOL with external starter Possibility of terminal box rotation no Insulation class F Bearing on D-side NU322EM1 Frequency converter supply no Bearing on ND-side 6322C3 Mounting arrangement IMB3 Bearings regreasing yes
