Crane motor 2SUDg200L6
synchronousthree-phase400 V

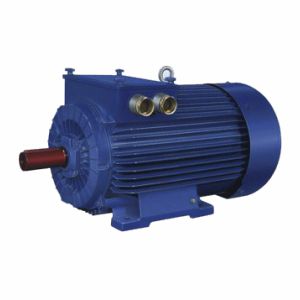

Crane motor - 2SUDg200L6 - Cantoni Motor - synchronous / three-phase / 400 V
Crane motor - 2SUDg200L6 - Cantoni Motor - synchronous / three-phase / 400 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
400 V
Configuration
cast iron, with slip ring
Protection class
IP55
Number of poles
6-pole
Cooling mechanism
IC411
Applications
for cranes
Other characteristics
IEC
Power

23 kW
(31.27 hp)

Intensity

46 A

Torque

232 Nm
(171.114419 ft.lb)

Rotational speed

947 rpm
(5,950.1765 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 2.7 Winding connection Y+Y Frequency [Hz] 50 Rated output [kW] 23 Rated output [HP] 31 Service factor [ 1.0 Efficiency at rated (full) load [ 84.3% Duty S3-25% Synchronous speed [rpm] 1000 Power factor at rated (full) load [ 0.86 Frame size 200 Terminal box position top Starting method DOL with external starter Possibility of terminal box rotation no Insulation class F Bearing on D-side 6212 C3 Frequency converter supply on demand Bearing on ND-side 6212 C3
