Crane motor 2SUDg250M6B
synchronousthree-phase400 V

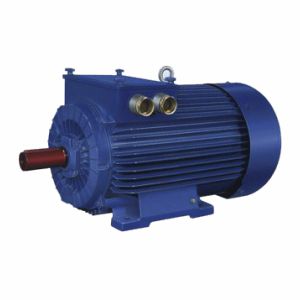

Crane motor - 2SUDg250M6B - Cantoni Motor - synchronous / three-phase / 400 V
Crane motor - 2SUDg250M6B - Cantoni Motor - synchronous / three-phase / 400 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
400 V
Configuration
cast iron, with slip ring
Protection class
IP55
Number of poles
6-pole
Cooling mechanism
IC411
Applications
for cranes
Other characteristics
IEC
Power

45 kW
(61.18 hp)

Intensity

90 A

Torque

441 Nm
(325.264908 ft.lb)

Rotational speed

977 rpm
(6,138.672 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 3.3 Winding connection Y+Y Frequency [Hz] 50 Rated output [HP] 61 Service factor [ 1.0 Efficiency at rated (full) load [ 90.0% Duty S3-40% Synchronous speed [rpm] 1000 Power factor at rated (full) load [ 0.80 Frame size 250 Terminal box position top Starting method DOL with external starter Possibility of terminal box rotation no Insulation class F Bearing on D-side 6215 C3 Frequency converter supply on demand Bearing on ND-side 6215 C3 Mounting arrangement IMB3/B5/B35 Bearings regreasing yes Housing - material cast iron Weight (IMB3) [kg] 525 Feet - material cast iron
