Crane motor SUDg132M-4A
synchronousthree-phase400 V

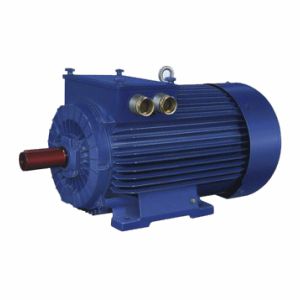

Crane motor - SUDg132M-4A - Cantoni Motor - synchronous / three-phase / 400 V
Crane motor - SUDg132M-4A - Cantoni Motor - synchronous / three-phase / 400 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
400 V
Configuration
cast iron, with slip ring
Protection class
IP44
Number of poles
4-pole
Cooling mechanism
IC411
Applications
for cranes
Other characteristics
IEC
Power

6.3 kW
(8.57 hp)

Intensity

13 A

Torque

42.9 Nm
(31.641416 ft.lb)

Rotational speed

1,400 rpm
(8,796.4594 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 2.5 Winding connection Y+Y Frequency [Hz] 50 Efficiency at 2/4 of full load [ 82.9% Rated output [HP] 8.5 Efficiency at 3/4 of full load [ 84.1% Service factor [ 1.0 Efficiency at rated (full) load [ 83.0% Duty S3-40% Synchronous speed [rpm] 1500 Power factor at 2/4 of full load [ 0.67 Power factor at 3/4 of full load [ 0.78 Power factor at rated (full) load [ 0.84 Sound pressure level [dB] 75 Frame size 132 Sound power level [dB] 64 Terminal box position top Starting method DOL with external starter Possibility of terminal box rotation no Insulation class F Bearing on D-side 6308 2Z Frequency converter supply on demand Bearing on ND-side 6308 2Z
