video corpo

hydraulic press / calibration / bench-top / laboratory
AutoPellet series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
hydraulic press hydraulic press - AutoPellet series
{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Function:

    calibration

  • Other characteristics:

    bench-top, laboratory

  • Opening:

    Min.: 2 in

    Max.: 7 in

Description

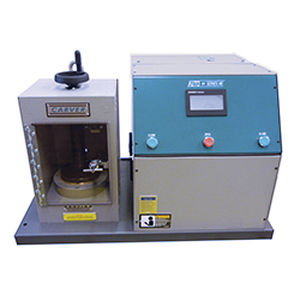

The self-contained 25 & 40 ton AutoPellet press has 5" diameter platen and integral safety shield cabinet enclosing electrically powered hydraulic system. Rigid slab side construction maintains precise alignment and includes provision for a vacuum line connection to the pellet die. The AutoPellet presses have a programmable control system with 10 recipe storage capacity, with programmable decompression rates.


Carver Pellet Dies available in sample sizes of 6, 12, 13, 25, 31 and 40mm. (sold separately) Click here for details

Specifications of the Bench Top Auto Pellet Press Model 3887NE.L & 4387NE.L:
Your choice of clamping force in 25 & 40 tons (minimum 1,000)
Daylight Opening 1.5" – 7.25"
Stroke 1"
Rugged slab-side construction
Daylight adjustment wheel with swivel handle
Self-contained hydraulic unit
5" diameter work area
Programmable setpoints for clamp force, dwell time and ejection force
10 recipe storage capability
Programmable in units of pounds
Programmable decompression rates
Interlocked safety enclosure with hinged door
Available in 115V-1Ph or 230V 1-Ph supply voltage upon request
Electrical disconnect (non-fused)
Dimensions: 32.5"L-R x 19.75"F-B x 22" min. to 28" max.H, including handle (uncrated)
