Hydraulic press CMG serieslaminationassemblyfor molding
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Function
- lamination, assembly, for molding, test
- Applications
- laboratory
- Force
30 tf, 50 tf, 75 tf, 100 tf
- Opening
Max.: 22 in
Min.: 6 in
- Stroke
6 in, 8 in, 12 in
- Weight
Max.: 7,500 lb
(3,402 kg)Min.: 1,850 lb
(839 kg)- Overall width
Max.: 72 in
Min.: 42 in
Description

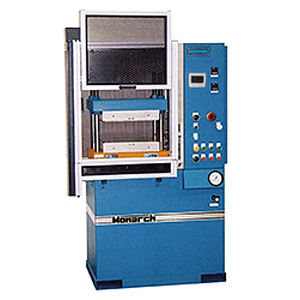

Carver's Monarch laboratory presses with integral hydraulic system and high technology options are based on standard production press models adapted to precision laboratory requirements.
Recommended for testing or research, compacting, molding rubber or plastic, laminating and assembly where stripping pressure is required.
Standard features include double-acting J.I.C. style cylinder for power open and power close. An integral hydraulic reservoir is easily accessible for cleaning and includes a strainer or cartridge filter, air filter/breather, oil level indicator and oil cooler. A programmable controller with access module is standard.
Optional equipment includes electrically heated platens to 600°, 800° or 1200°F, with digital temperature controllers, low pressure system, pressing speed control and automatic platen cooling.
