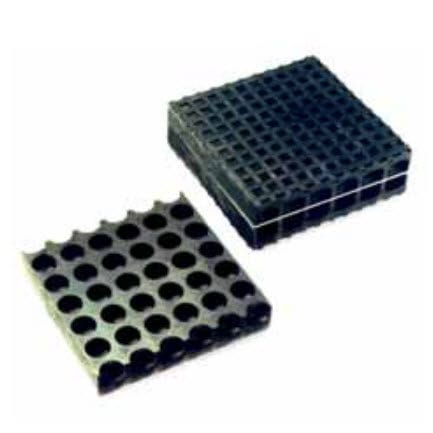

Polyurethane vibration damping plate PLAKISOL IM series

Specific profile plate to improve the insulation efficiency. Shock absorption. PU elastomer resistant to UV ozone grease and high damping power. Load capacity: 0.50 to 8 kg/cm². Elastomer U - DAMP * (PUR) Dimensions - 500 x 500 x 25mm or 50mm 250x250x25mm lOOxlOOx 25 mm Load capacity - 1 à 8kg/cm2 Dry friction coefficient - 0.8 Ratio static/dynamicstiffness - 3 DampingC/Cc - 0.12 Résistant to oils solvents and ozone - High Profil - 1 side with holes for increasing the elasticity the other side with non-slip profile. Combinaison - Mounting double layers Vibration isolation Shock damping Résistant to oils solvents ozone Structure-borne noise isolation Driti résistance • - Elasticity • - Shock Absorption • - Noise réduction structure • - Does not stick • - No creep • - Natural frequency low
