drying oven / tunnel / infrared / hot air impingement



  • Function:


  • Configuration:


  • Heat source:

    infrared, hot air impingement

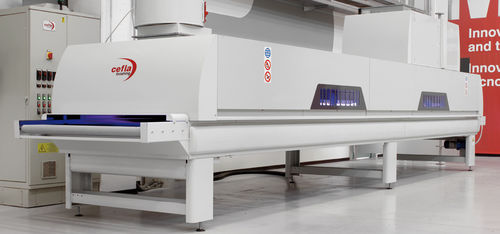

Modular in-line drying oven

Ecogel solutions are perfect for rapid drying processes for paints with low dry residue, and for solvent evaporation

Ecogel E
The ECOGEL modular system is a modern, effective, flexible solution to in-line drying needs. Extremely practical thanks to its continuous panel conveyor system. The oven contains a laminar hot air flow with adjustable recirculation, in the opposite direction to panel feed. Hold time inside the oven can be adjusted on the basis of panel feed speed. Drying takes just a few minutes, making this system ideal for the flash-off or rapid drying of paints with low dry residue. Also recommended for flash-off in glue applications.

Ecogel Mps
The Ecogel MPS configuration is the latest frontier in the development of the in-line UV drying technology, perfect for high quality finishes: it guarantees the maximum uniformity of colour and opacity across the surface and minimal solvent emission. A high power UV lamp (Mercury or Gallium) emits radiation which strikes the layer of paint applied to the panels by means of convex reflectors placed at a decreasing distance from the panels. This gradual increase in UV emission power considerably reduces gelation time and energy use. This configuration is an excellent alternative to the low power TL lamps normally used. It should thus be installed downstream of solvent evaporation and upstream of direct irradiation with high power UV lamps for final curing of the surface layer.
