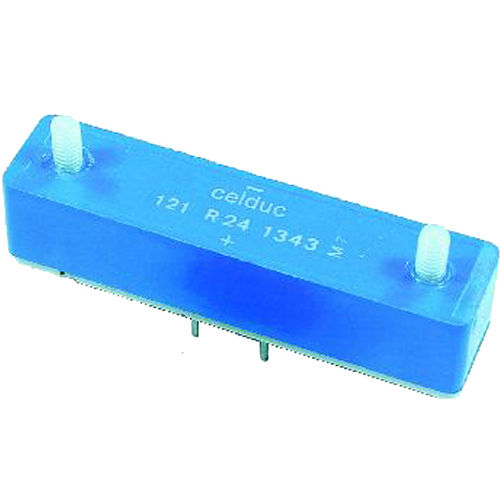

5VDC reed relay R seriesfor printed circuit boards
Add to favorites
Compare this product
Characteristics
- Control voltage
- 5VDC
- Mounting
- for printed circuit boards
- Switching current
Min.: 0.3 A
Max.: 3 A
Description
This reed switch is made specifically for printed circuit board. Its vertical operating position is ± 30° with a total switching voltage of 500VDC. Its total switching current is 1A, while the switch's nominal current is 3A. Its contact rating is 50 VA. The reed switch is made out of Mercure contact material.
Catalogs
No catalogs are available for this product.
See all of celduc relais‘s catalogsOther celduc relais products
