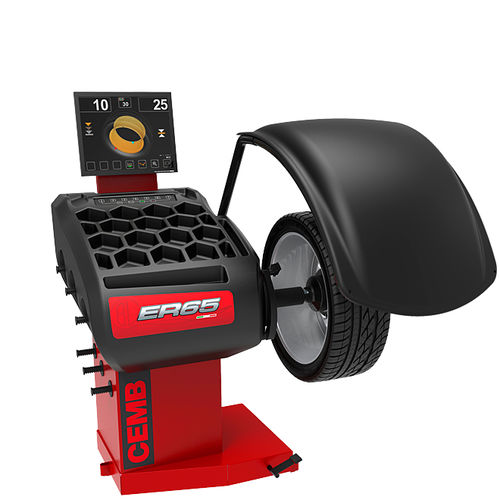

Car wheel balancer ER65

automaticwith touchscreencomputerized

Product overview
The ER65 is a wheel balancer designed to combine precision, ergonomic operation and automation to simplify daily workflows in busy workshops. It provides 17" touchscreen control, laser-guided positioning and adaptive tolerance calculation for efficient balancing.

Main features

• 17" touchscreen interface for fast, user-friendly interaction
• Automatic gauge for distance and diameter measurement (up to 28")
• LA sonar for quick, automatic width detection
• Electromagnetic brake to lock the wheel precisely at the correction position
• Automatic Approach to position the wheel within 15° of the weight application point
• LED lighting to improve visibility inside the rim
• AutoAdaptive Mode for real-time tolerance calculation based on wheel characteristics

Available versions

• EVO Version – equipped with a laser line for easy and accurate adhesive weight placement
• SPOTTER Version – features a Laser Spotter for pinpoint correction and includes OPB (One Plane Balancing)

Locking options
Both ER65 EVO and ER65 SPOTTER are offered with manual or pneumatic wheel locking (‑SE Version).

Feature details
Automatic Approach — How it works
Once the measurement spin is complete, the wheel automatically stops approximately 15° before the correction point, allowing the operator to place the weight accurately with minimal effort. After the first plane correction, pressing the repositioning button moves the wheel near the second correction point.
Advantages:

• Reduces the distance between the stop point and the weight application point
• Minimizes the time needed for manual positioning
• Increases overall speed of the balancing process
• Improves operational efficiency, especially on mid- and entry-level balancers

AutoAdaptive Mode — How it works
AutoAdaptive Mode acquires each wheel’s weight and dimensions and recalculates the tolerance value to eliminate vibrations felt on the steering wheel. Unlike fixed residual imbalance thresholds, it adapts tolerance to wheel weight and geometry to ensure driving comfort and optimize balancing times.
Advantages:

• Eliminates vibrations felt on the steering wheel
• Ensures maximum driving comfort
• Optimizes balancing times
• Works in synergy with the OPB program

Laser Spotter — How it works
Laser Spotter indicates the area of the rim where unbalance will be corrected and precisely shows where to apply adhesive weights inside the rim; combined with the electromagnetic brake it eliminates angular positioning errors, making balancing faster and more accurate.
Advantages:

• Accurately indicates the weight application point
• Minimizes positioning errors
• Speeds up the balancing process
• Eases the operator’s work

OPB — One Plane Balancing
OPB corrects static imbalance using a single counterweight while keeping dynamic imbalance within tolerance. It reduces vibrations, balancing time, and weight consumption.
Advantages:

• Up to 40% balancing time saved per wheel
• Approximately 70% of wheels can be balanced with a single counterweight
• Reduces operator workload and saves working hours annually

Technical data
Single phase power supply: 230V/1ph/50 Hz; 115V/1ph/60 Hz
Max. absorbed power: 0.65 kW
Balancing speed: 100 rpm
Measuring cycle for 15 kg (33 lb) wheel: 4.7 s
Measurement uncertainty: 0.5 g
Average noise: < 70 dB (A)
Rim width setting range: 1.5" ÷ 20" / 40 ÷ 510 mm
Rim diameter setting range: 10" ÷ 30" / 265 ÷ 765 mm
Min./Max. compressed air pressure: 7 ÷ 10 kg/cm2 ~ 0.7 ÷ 1 MPa ~ 7 ÷ 10 bar ~ 105 ÷ 145 psi
Max. wheel weight: < 75 kg
Machine weight: 120 kg

Standard accessories

• 41FF83146 – Quick locknut GL40 (quick locknut with sleeve and rubber protection ring)
• 41FF034417 – Quick locking sleeve SE2 (set composed by ring, quick locking sleeve SE2, SE spacer)
• 41FF034416 – Set of 3 cones, pincer and weight (cones Ø 45÷110 mm, pincer-hammer and 60 g counterweight)
• 46FC77653 – Gauge (manual gauge for width measurement)

Optional equipment (selected)

• 900ZERSAD – ZEROWEIGHT STAND ALONE (automatic wheel lifter, max capacity 80 kg)
• 900EASYWB – EASYWEIGHT (professional mechanical wheel lift, ZERO weight effect)
• 41FFA6478 – SRU 345 (adapter, infinitely adjustable hole circle 75 to 210 mm)
• 41FFA5298 – SRU 345/SE (adapter for pneumatic locking balancers)
• 41FF42048 – UH20/2 (universal adapter for wheels with 3–6 holes, 95–210 mm)

Specifications

• Model: ER65
• Brand: CEMB
• Touchscreen: 17" interface
• Automatic gauge: distance and diameter measurement (up to 28")
• Width detection: LA sonar
• Braking: Electromagnetic brake for precise wheel locking
• Positioning: Automatic Approach (wheel positioned within 15° of weight application point)
• Lighting: LED inside rim
• Adaptive tolerance: AutoAdaptive Mode (real-time recalculation based on weight and dimensions)
• Optional balancing programs: OPB (One Plane Balancing)
• Available versions: EVO (laser line), SPOTTER (Laser Spotter + OPB)
• Locking options: manual or pneumatic (-SE Version)
• Electrical supply options: 230V/1ph/50 Hz or 115V/1ph/60 Hz
• Max wheel weight capacity: < 75 kg
• Machine weight: 120 kg
