Car wheel balancer Move!

automaticcomputerized

Product summary

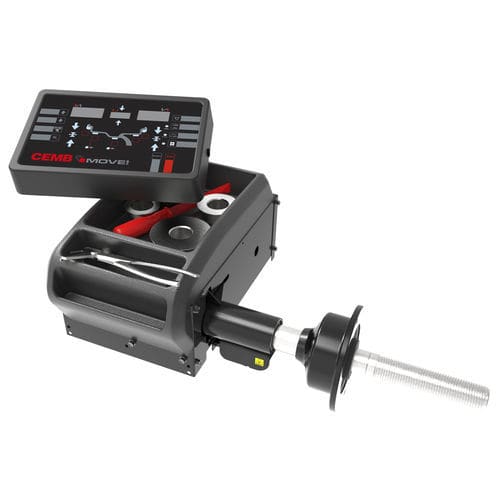

CEMB MOVE! is a fully automatic portable wheel balancer for mobile service, compact workshops and van-mounted applications. It supports bench or baseplate installation, or integration into service vehicles, offering flexible installation options without compromising measurement performance.

Core technologies and benefits

• 2-Hit system with Laser Spotter: acquires wheel dimensions without mechanical gauges and guides weight placement precisely for faster set-up.
• Spotter Laser: laser-guided pointer that identifies the exact adhesive weight application point on the rim.
• OPB (One Plane Balancing): performs single-plane correction to remove static imbalance while keeping dynamic imbalance within tolerance, reducing correction time and weight use.
• AutoAdaptive Mode: dynamically recalculates tolerance per wheel based on measured data to eliminate steering-wheel vibrations and optimize cycle times.
• Virtual Sonar: software-based rim-width detection for steel wheels using a rim-profile database to estimate the outer plane for the second correction.
• Electromagnetic brake: locks the wheel at the correction position for accurate and stable weight application.
• Automatic Approach: stops the wheel approximately 15° before the correction point to reduce manual repositioning.
• Optional manual locking for workshop preferences.

Feature advantages (selected)
Laser Spotter

• Indicates the exact internal rim position for adhesive weights.
• Reduces positioning errors and rework.
• Speeds up the balancing sequence and eases operator workflow.

OPB: One Plane Balancing

• Up to 40% time savings per wheel in balancing cycles.
• Approximately 70% of wheels can be balanced with a single counterweight.
• Significant yearly labor savings in high-volume operations.

AutoAdaptive Mode

• Eliminates steering-wheel vibrations by adapting tolerance to each wheel.
• Optimizes cycle time and works in synergy with OPB.

Virtual Sonar

• Provides sonar-level rim detection on entry-level machines without physical sonar hardware.
• Reduces manual input errors and shortens measurement time.

Technical data
Power supply: single phase 230V/1ph/50-60 Hz (optionally 115V/1ph/50-60 Hz).
Max. absorbed power: 0.65 kW.
Balancing speed: 100 rpm.
Measuring cycle for 15 kg (33 lb) wheel: 4.7 s.
Measurement uncertainty: 1 g.
Average noise: < 70 dB(A).
Rim width range: 1.5” ÷ 20” (40 ÷ 510 mm).
Rim diameter range: 10” ÷ 30” (265 ÷ 765 mm).
Max. wheel weight: < 75 kg.
Machine weight: < 30 kg.

Technical specifications

• Key functions: Laser Spotter, One Plane Balancing (OPB), AutoAdaptive Mode, Virtual Sonar, Electromagnetic brake, Automatic Approach, Manual locking.
• Installation: bench/baseplate mounting or van integration for mobile service.
• Designed for: mobile service technicians, compact workshops and on-site wheel balancing.
