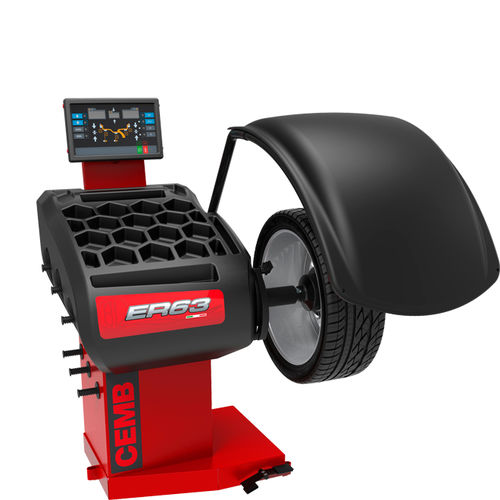

Car wheel balancer ER63

automaticcomputerized

Product overview
Reliable and accurate digital wheel balancer for everyday use. The ER63 is designed to ensure high precision, operator comfort and daily reliability, ideal for professional workshops.

Key features

• 17” digital interface with clear, intuitive graphics for faster operation
• Automatic gauge for rim distance and diameter (up to 28”)
• LA sonar for quick, contactless width measurement
• Electromagnetic brake for precise wheel locking at the correction point
• Automatic Approach to bring the wheel within 15° of the weight application area
• LED lighting for enhanced visibility inside the rim
• AutoAdaptive Mode that calculates dynamic tolerance based on wheel characteristics

Configurations

• EVO Version – with a laser line for guided adhesive weight placement inside the rim
• SPOTTER Version – with a high-precision Laser Spotter that pinpoints the exact correction spot and supports OPB (One Plane Balancing) for optimal results

Additional capabilities and functions

• Automatic Approach: automatically positions the wheel approximately 15° before the correction point to simplify and speed up weight application; repositioning button moves the wheel near the second correction point after first-plane correction
• AutoAdaptive Mode: recalculates tolerance for each wheel by acquiring its weight and dimensions to eliminate vibrations felt on the steering wheel and optimize balancing times
• Laser Spotter: indicates the exact point inside the rim where adhesive weights should be applied; works with the electromagnetic brake to lock the wheel at the exact angular position of the unbalance
• OPB (One Plane Balancing): function that corrects static imbalance using a single counterweight while keeping dynamic imbalance within tolerance, reducing balancing time and weight consumption
• Pneumatic or manual wheel locking available (SE versions)

Standard accessories

• 41FF83146 – Quick locknut GL40: Quick locknut GL40, with sleeve and rubber protection ring
• 41FF034417 – Quick locking sleeve SE2: Set composed by ring, quick locking sleeve SE2, SE spacer
• 41FF034416 – Set of 3 cones, pincer and weight: Set composed by 3 cones Ø 45÷110 mm, pincer-hammer and 60 g counterweight
• 46FC77653 – Gauge: Manual gauge for width measurement

Optional equipment

• 900ZERSAD – ZEROWEIGHT STAND ALONE: professional automatic wheel lifter (max capacity 80 kg), PLC and integrated pneumatic system
• 900EASYWB – EASYWEIGHT: professional mechanical wheel lift, zero weight effect managed mechanically with compressed air
• 41FFA6478 – SRU 345: adapter for manual locking balancers for 3, 4, 5 and 6 hole rims (adjustable hole circle 75–210 mm)
• 41FFA5298 – SRU 345/SE: adapter for pneumatic locking balancers for 3, 4, 5 and 6 hole rims
• 41FF42048 – UH20/2: universal adapter for wheels with 3–6 holes (95–210 mm pitch circle Ø) with high precision back centering double cone
• 41FF53550 – VL/2-GG-G40 Kit: kit for Ford pick-up and other 4-wheel drive vehicles (Ø 97–180 mm)
• 40FF048781 – Double-sided cone: for central hole Ø 100–194 mm

Technical specifications

• Single phase power supply: 230V/1ph/50 Hz or 115V/1ph/60 Hz
• Max. absorbed power: 0,65 kW
• Balancing speed: 100 rpm
• Measuring cycle for 15 kg (33 lb) wheel: 4.7 s
• Measurement uncertainty: 1 g
• Average noise: < 70 dB(A)
• Rim width setting range: 1.5” ÷ 20” / 40 ÷ 510 mm
• Rim diameter setting range: 10” ÷ 30” / 265 ÷ 765 mm
• Min./Max. compressed air pressure: 7 ÷ 10 kg/cm² (~ 0.7 ÷ 1 MPa / 7 ÷ 10 bar / 105 ÷ 145 psi)
• Max. wheel weight: < 75 kg
• Machine weight: 120 kg
