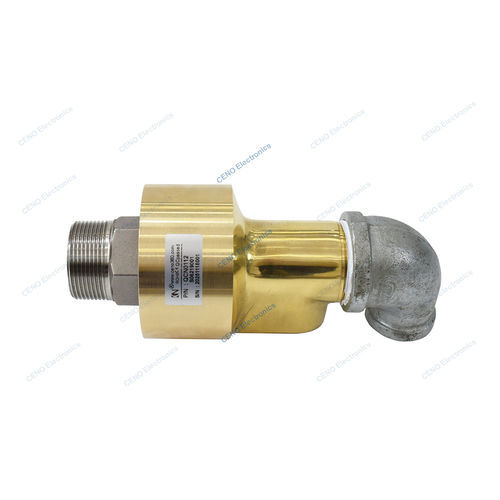

Water rotary union QCN0112for oilfor gasfor compressed air
Add to favorites
Compare this product
Characteristics
- Medium
- for water, for compressed air, for oil, for gas
- Applications
- for pneumatic applications
- Material
- brass, stainless steel
- Rotational speed
250 rpm
(1,570.8 rad.min-1)- Pressure
Min.: 0 bar
(0 psi)Max.: 15 bar
(218 psi)
Description
Overview
QCN0112 is a CENO pneumatic rotary union with a maximum pressure of 15 Bar. Gas-liquid rotary unions are designed to transfer both pneumatic and hydraulic media, including compressed air, hydrogen, nitrogen, water, oil and coolant. Sealing methods vary according to the transferred medium; each rotary joint type has specific advantages and limitations. CENO recommends the appropriate joint based on the medium to be transferred.
Transferred media
Outline drawing
Outline and dimensional drawing available for the QCN0112 product.
Technical specifications
QCN0112 is a CENO pneumatic rotary union with a maximum pressure of 15 Bar. Gas-liquid rotary unions are designed to transfer both pneumatic and hydraulic media, including compressed air, hydrogen, nitrogen, water, oil and coolant. Sealing methods vary according to the transferred medium; each rotary joint type has specific advantages and limitations. CENO recommends the appropriate joint based on the medium to be transferred.
Transferred media
- Compressed air
- Hydrogen
- Nitrogen
- Water
- Oil
- Coolant
Outline drawing
Outline and dimensional drawing available for the QCN0112 product.
Technical specifications
- Channels: 1 (air)
- Pressure: ≤15 Bar
- Speed: 250 RPM
- Housing material: Brass + Stainless steel
Catalogs
No catalogs are available for this product.
