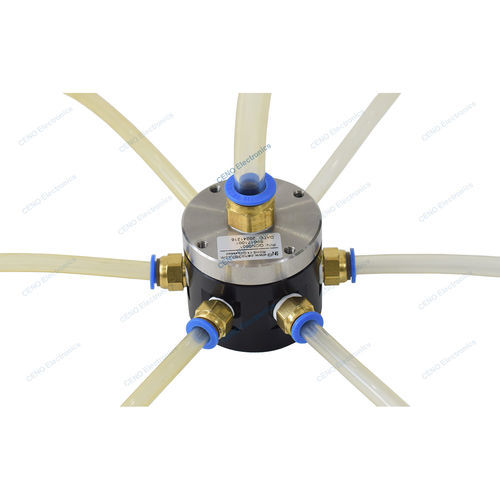

Compressed air rotary union QCN0601

for airfor gas6-passage

Product overview
QCN0601 is a customized pneumatic rotary union with 6 gas channels and a maximum rotational speed of 100 RPM. CENO has designed and manufactured hundreds of pneumatic and hydraulic rotary unions over the past twenty years. Most parameters can be customized for specific applications, including number of channels, pressure range, rotational speed and external configuration. The unit transmits pneumatic and hydraulic media in rotating systems to maintain continuous flow during rotation, using sealing technology to prevent leaks. Typical applications include robotic systems, medical devices and high-end manufacturing equipment.

Specification

• Model: QCN0601
• Channels: 6 (gas)
• Interface size: Ø4 mm tube (G1/8”)
• Pressure: -100 kPa to 0.8 MPa
• Working speed: 0–100 RPM
• Housing material: Aluminum alloy
• Rotation torque: ≤ 0.6 N·m

Outline drawing
Outline drawing available (title: QCN0601 drawing rev).
