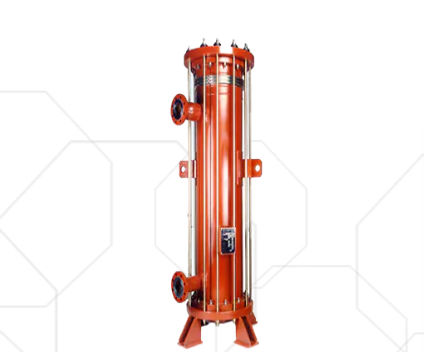

Shell and tube heat exchanger EVliquid/liquidsteelgraphite
Add to favorites
Compare this product
Characteristics
- Type
- shell and tube
- Fluid
- liquid/liquid
- Material
- steel, graphite
- Other characteristics
- ATEX
- Operating pressure
10 bar, 15 bar
(145.04 psi, 217.56 psi)- Temperature
170 °C
(338 °F)
Description
Graphite blocks vertical heat exchangers type EV
Construction
Carbonite® cylindrical blocks heat exchangers.
Vertical mounting.
Service enclosure in steel or specific metallurgy.
Design and construction in accordance with PED 2014/68/EU.
Main Options
Cable gland construction or expansion compensator.
Internal anti-corrosion coating of the service envelope.
Exterior insulation of the envelope.
Construction for use in ATEX zone.
New graphite cylindrical blocks
Available in NEV (standard drilling) or NXEV (dense drilling) versions.
NEV D and NXEV D versions, in double drilling, of identical design and external dimensions, provide, at a minimum, by doubling the Process drilling, a "Process area/Service area" ratio roughly equal to two.
