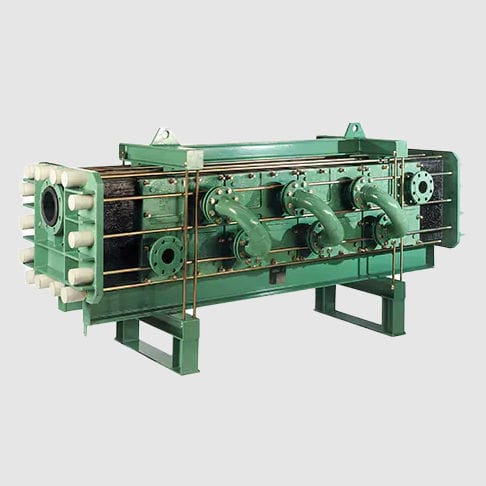

Plate heat exchanger ESCliquid/liquidsteelgraphite
Add to favorites
Compare this product
Characteristics
- Type
- plate
- Fluid
- liquid/liquid
- Material
- steel, graphite
- Other characteristics
- ATEX
- Applications
- surface
- Operating pressure
6 Pa
(0 psi)- Temperature
170 °C
(338 °F)
Description
Graphite blocks cubic section heat exchangers type ESC
Construction
ESC heat exchangers with cubic blocks in Carbonite®.
Horizontal or vertical mounting.
Service side plate in steel or cast iron.
Design and construction in accordance with PED 2014/68/EU.
Main Options
Processed graphite headers with horizontal or vertical connections.
Stainless steel service plates.
Inclined support.
Construction for use in ATEX zone.
Uses
Condenser
Cooler with liquid
Heater with liquid
Abilities
Number of blocks: 1
Product passage diameter: from 8 to 20 mm
Heat exchange surface: from 1 to 120 m²
Avantages
Robustness of Carbonite© blocks
Block from 200 to 610 mm sideways
Multi-pass possible
Modular, mono or multi-block design
Catalogs
Heat Exchangers
12 Pages
