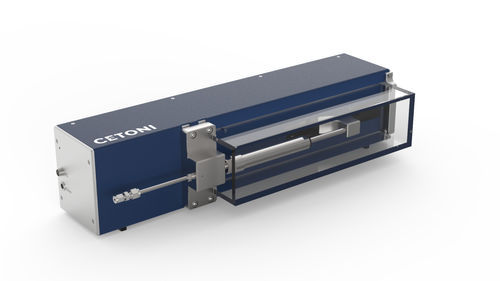

Syringe pump Nemesys ultra

for chemicalsoilelectric

Syringe pump Nemesys ultra high pressure module High throughput and high pressure applications up to 890 bar Under our earth’s crust, which is millions of years old, not only has time left its mark, there is also enormous pressure. It is therefore logical that to research the raw materials oil and natural gas stored under this crust, equally high pressures must be generated. If the highest accuracy is also demanded, which is essential for meaningful measured values, the Nemesys ultra-high pressure module can fully exploit its 7000 Newtons (approx. 700 kg weight) of thrust. Up to 890 bar of pressure can be made available for your application. In addition to applications that require these pressures (e.g. test beds, pressure cells, etc.), this thrust is also ideally suited for metering viscous fluids (paints, lubricants, silicones etc.) in industrial processes. The equally high travel speed makes the Nemesys ultra-high pressure module interesting for chemical syntheses on a production scale, as it can deliver flow rates of up to 1.5 liters per minute using the 250 ml syringe, with proven precision and free of pulsation , for which Nemesys syringe pumps are known. This means that flow synthesis systems with production volumes in the tonnes-per-year range can be implemented in the smallest of spaces and with all the advantages of flow chemistry. Compact, versatile and expandable Thanks to the very compact design and a selection of interchangeable steel syringes, our Nemesys ultra-high pressure module can also be perfectly integrated into test beds or test systems as a flexible and easy-to-use instrument.
