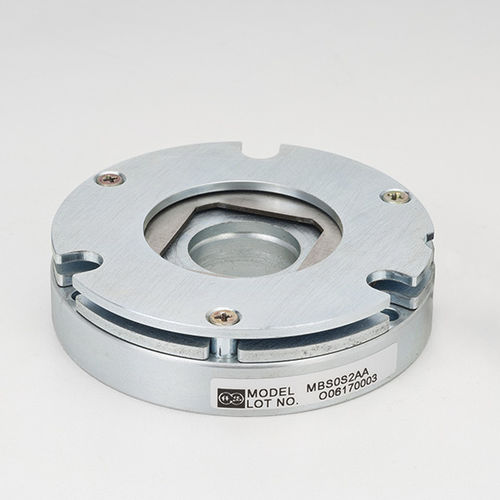

Failsafe brake MBS Series

frictionelectromagnetic releasespring activated

Ultra Thin Brake - Overexcitation Over Excitation Voltage: 24 VDC Holding Voltage:7 VDC or 12 VDC Application: Robotics, medical, Industry 4.0, servo motors * Optional Accessory: PWM Controller * No PWM required for models over 12Nm * Customization Available MBS Ultra Thin Brake - Overexcitation MBS- Miniature Slim Brake with over excitation is an ultra-compact design for saving installation space. Combining a special over-excitation controller, it provides high torque, low power consumption and efficiently reduces the temperature of brakes. Operation: Once energized with 24 VDC, the PWM controller will provide the 12VDC or 7VDC to hold the brake in the release position.When power is turned off, the electromagnetic field dissipates, then brake locks. Features Designed to motor frame for easy installation. Ultra compact design for more space saving. High Torque, low power consumption.
