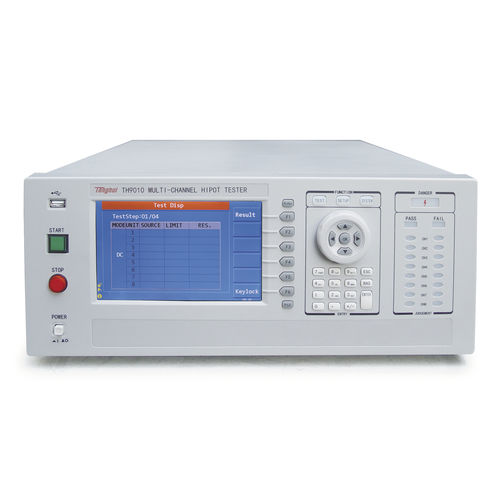

DC hipot tester TH9010 series

AC

Features ■ 7-inch 800×480 dot-matrix, TFT-LCD display ■ Chinese and English operation interface and concise interface operation design ■ 8-channel withstand voltage parallel output and test efficiency increased eight times ■ Parallel 8-channels and each channel is non-interfering ■ Each channel can be extended by a four-channel scanner ■ Support 4 four-channel scanner at most and one instrument can be extended to 128 channels ■ Four-channel scanner supports contact check function ■ Single output power: AC:5kV/10mA; DC:6kV/5mA ■ Insulation resistance test voltage: 0.10kV -1.00kV ■ Enhanced security: electric shock protection ■ Rapid discharge and arc detection function ■ Arbitrarily set voltage rising time and test time in 999.9 seconds; freely set waiting time for insulation resistance ■ Key-Lock Function ■ Display the PASS/FAIL result of each channel independently and the total result simultaneously ■ Store 100 test files and each file can hold at most 20 testing steps Application ■ Automated test system ■ Household appliances ■ Transformers, motors ■ Electrical equipment ■ Lighting industry ■ New energy vehicles ■ Electronic components ■ Medical equipment
