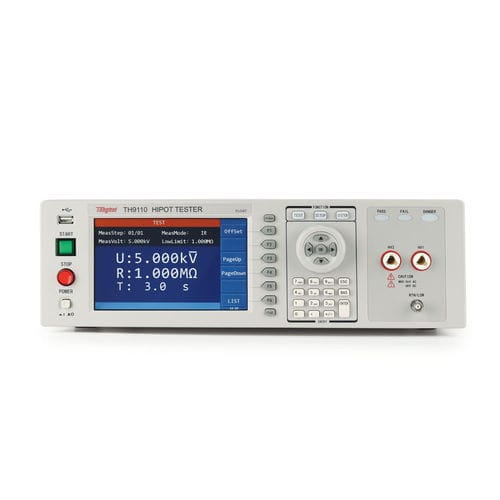

DC hipot tester TH9110 series

AChigh-voltage

■ High power: AC 5kV / 100mA / 500VA output ■ High security: High-voltage floating output design, in line with the safety requirements of EU standards EN50191 (only TH9110) Electric shock protection function ■ High resolution: 7 inch 800 × 480 dots, TFT-LCD display ■ Brand-new operation interface, Chinese and English menu ■ ARC detection function ■ Contact check function (OSC) ■ Breakdown voltage test function ■ One-key screen capture function ■ One-key recording function ■ Rear panel output function to facilitate automated production line testing ■ Storage: 100 files, up to 50 steps per file Application ■ Winding devices Transformers, generators/motors and other products needing high-power withstand voltage test and analysis, such as different types of motor stator, rotor and other high parasitic capacitance products ■ Electronic components Capacitors, coils, cores, choke coils, filters and so on ■ Electrical products Household appliances, information products, audio-visual equipment, electric heating appliances, lighting equipment ■ Non-electrical products Withstand voltage and insulation resistance test for wire, non-woven fabric, insulation materials and so on ■ New energy automobile ■ Automated test system ■ Medical equipment
