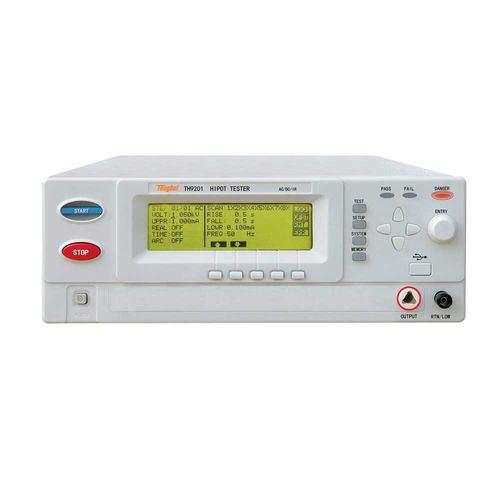

DC hipot tester TH9200 series

AC

Features ■ TH9201S:8-channel scanning AC/DC withstanding voltage & insulation tester TH9201/TH9201B: AC/DC withstanding voltage & insulation tester TH9201C: DC withstanding voltage tester ■ 240×64 Dot-matrix graphic LCD display ■ Fast discharge and arc detection function ■ Body protection function ■ Built-in 8-channel matrix scanner for convenient use ■ Set voltage rising time, test time, and voltage dropping time randomly for different load, DC withstanding voltage current judging & waiting time ■ 100 test steps being stored per group, totally 50 groups, and the total testing steps are limited at 500 ■ Current base number correction function ■ Brand new operation interface and humanized panel design ■ Abundant interfaces Handler, RS-232C, SCAN, GPIB(optional) Brief Introduction ■ TH9201 series AC/DC withstanding voltage & insulation tester is a kind of Hipot Tester. Due to simple and compact structure, mature technique, brand new structure and operating interface, the operation becomes more convenient, and more practical functions are included as well. TH9201 series can be widely applied in transformer,device, component especially for winding safety inspection.
