- DC hipot tester
- Changzhou Tonghui Electronic Co., Ltd.

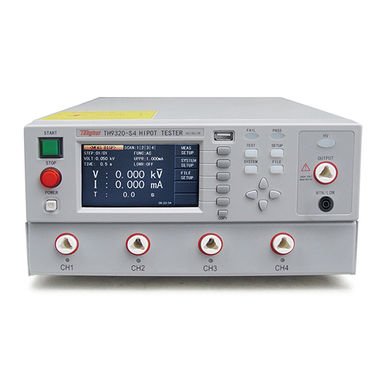

DC hipot tester TH9320-S seriesAC
Add to favorites
Compare this product
Characteristics
- Options
- DC, AC
Description
Features
■ Output voltage: AC:5kV/20mA; DC:6kV/10mA
■ Test voltage of insulation resistance:0.10kV-1.00kV
Test range of insulation resistance: 1MΩ-1000MΩ
■ 480×272 dot-matrix, TFT-LCD display
■ Provide 4 channels (-S4), 8 channels (-S8) scan interface
■ Rapidly discharging and arc detection
■ Randomly set voltage rising time and testing time in 999.9 seconds; Freely set waiting time for insulation resistance
■ Hold 20 testing steps; 4 testing modes selectable
■ Brand new operation interface and concise interface operation design
■ Lock keyboard
Brief Introduction
■ TH9320-S series AC/DC withstanding voltage/insulation resistance tester is an economical and intelligent safety tester with the characteristics of small size,light weight, pleasing appearance and easy operation. TH9320-S series can be widely used in the safety tests of household appliances, transformer, electrical equipments and components
