Type 2 safety light curtain CA10-T0372DP1
multibeamthrough-beamIP65

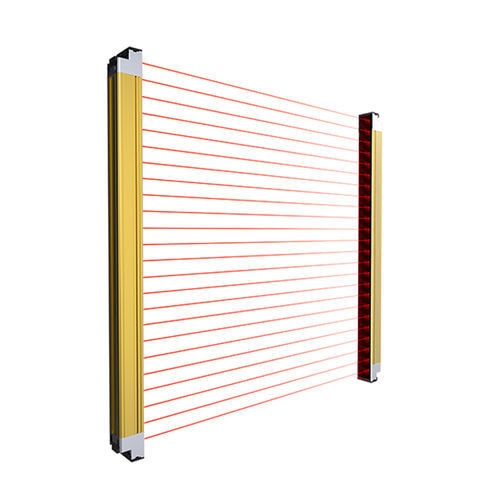

Type 2 safety light curtain - CA10-T0372DP1 - CHANKO SENSOR - multibeam / through-beam / IP65
Type 2 safety light curtain - CA10-T0372DP1 - CHANKO SENSOR - multibeam / through-beam / IP65
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Characteristics

Function
type 2 safety
Type of beam
multibeam
Configuration
through-beam
Protection level
IP65
Operating range

Max.: 3 m
(9'10" )

Min.: 0.1 m
(0'03" )

Description

Product
  • Series/Name: CA series light curtain
  • Product type: Standard
  • Detection range: 0.1–3 m
  • Detection principle: Through-beam
  • Output: PNP NO
  • Supply voltage: DC 24V
  • Protection class: IP65


Technical specifications
  • Cable length: 2 m
  • Synchronization: Cable synchronization
  • Beam pitch: 10 mm
  • Number of beams: 72
  • Protective height: 710 mm
  • Accessories: Instruction manual, certificate, mounting bracket, mounting screws
  • Materials: Housing: aluminium alloy; filter: PMMA; end cap: PC; plug: SUS304; cable: PVC


Mechanical / electrical parameters
  • Output: PNP NO
  • Supply voltage: DC 24V
  • Protection class: IP65
  • Connection: Molded cable
  • Signal type: Discrete (switch) signal
  • Operation mode: Light ON
  • Mounting: Upper and lower installation
  • Indicator: Emitter/receiver red flashing LEDs
  • Protection circuit: Short-circuit protection
  • Shock resistance: 30G, 3 times in X/Y/Z directions
  • Dielectric strength: AC 1000V 50/60Hz 1 min (between live parts and housing)
  • Vibration resistance: 10–55 Hz, 1.5 mm amplitude, 2 h in X/Y/Z directions


Operating environment
  • Relative humidity: 35–85% RH (no condensation) during operation/storage
  • Ambient illuminance: Receiver face illuminance — incandescent lamp ≤3000 lx, sunlight ≤10000 lx, incidence angle <5°


Accessories and drawings
  • Included accessories: Instruction manual, certificate, mounting bracket, mounting screws
  • Available downloads: 3D model (STP) and product manual (PDF)
