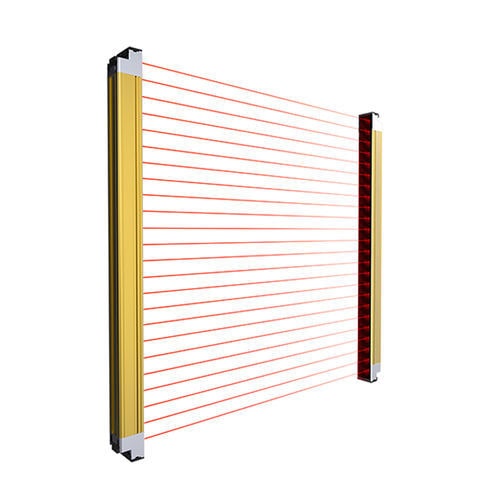

Type 2 safety light curtain CA10-T0372DN1multibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- standard, IP65
- Other characteristics
- finger protection
- Operating range
Max.: 3 m
(9'10" )Min.: 0.1 m
(0'03" )
Description
Product name
Overview
Technical specifications
Mechanical / Electrical parameters
Environmental conditions
Documents / Drawings
Accessories & Materials
- Model: CA10-T0372DN1
- Series: CA series safety light curtains
Overview
- Product type: Standard type
- Detection range: 0.1–3 m
- Detection principle: Through-beam (transmitter/receiver)
- Output: NPN NO
- Supply voltage: DC 24 V
- Ingress protection: IP65
Technical specifications
- Cable length: 2 m
- Synchronization: Line synchronization
- Beam spacing: 10 mm
- Number of beams: 72
- Protected height: 710 mm
- Accessories: Manual, certificate, mounting brackets, mounting screws
- Materials: Housing - aluminum alloy; filter - PMMA; end cap - PC; plug - SUS304; cable - PVC
Mechanical / Electrical parameters
- Output type: NPN NO
- Supply voltage: DC 24 V
- IP rating: IP65
- Connection: Molded cable
- Signal type: Discrete (switch) signal
- Operating mode: Light ON
- Mounting: Top/bottom installation
- Indicators: Transmitter/receiver both red blinking
- Protection circuit: Short-circuit protection
- Shock resistance: 30G, X/Y/Z directions, 3 times each
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (between live parts and housing)
- Vibration: 10–55 Hz, 1.5 mm amplitude, X/Y/Z directions, 2 h each
Environmental conditions
- Operating / storage humidity: 35–85% RH (no condensation)
- Receiver illumination limits: Incandescent light < 3000 lx, sunlight < 10000 lx, incident angle < 5°
Documents / Drawings
- 3D model: 3D model.stp
- Manual: Product manual (PDF)
Accessories & Materials
- Included accessories: Manual, certificate, mounting brackets, mounting screws
- Material details: Housing - aluminum alloy; filter - PMMA; end cap - PC; plug - SUS304; cable - PVC
