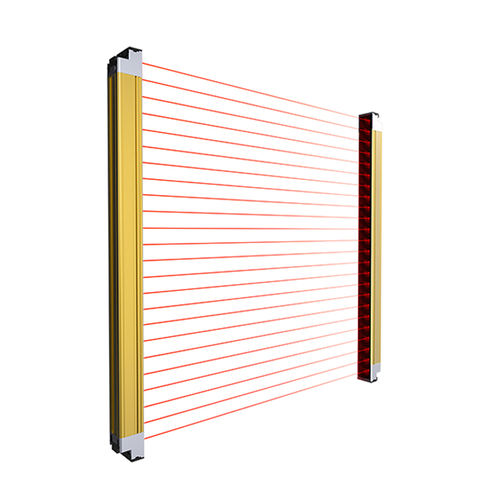

Type 2 safety light curtain CA90-T0311DN2-A

multibeamthrough-beamvibration-resistant

Product Type:Universal Protection Height:900mm Optical Axis Spacing:90mm number of optical axes:11 technical specification Connection Method Connector Synchronously Line Sync Optical Axis Spacing 90mm number of optical axes 11 Protection Height 900mm Output Method NPN NC Product Type Universal Detect Objects Minimum above φ95mm opaque objects response time ≤20ms (according to the number of different optical axes) light source Infrared 850nm product accessories Instructions, certificate, mounting bracket, mounting screws physical property shock resistant 10~55HZ, up and down amplitude 1.5mm, 2 hours in each direction of X/Y/Z resistance 30G X/Y/Z 3 times in each direction applicable environment Operating Temperature -10℃~55℃ ambient illuminance Receiver surface illumination: incandescent lamp below 3000lux, sunlight below 10000lux, incident angle <5° electrical characteristic supply volage range Working voltage: DC24V ripple (P-P) less than 10% protection circuit Power reverse connection protection, output short circuit protection withstand voltage AC1000V 50/60HZ 1min charging between the whole body and the housing indicator Normal state (unobstructed state): The emitter is always red and the receiver is always green. There is an obstruction state: both the transmitter and receiver are steady red. Fault state: both the transmitter and receiver are flashing red. metail/weight material Housing: Aluminum Filter: PMMA End cap: PC Plug: SUS304 Cable: PVC
