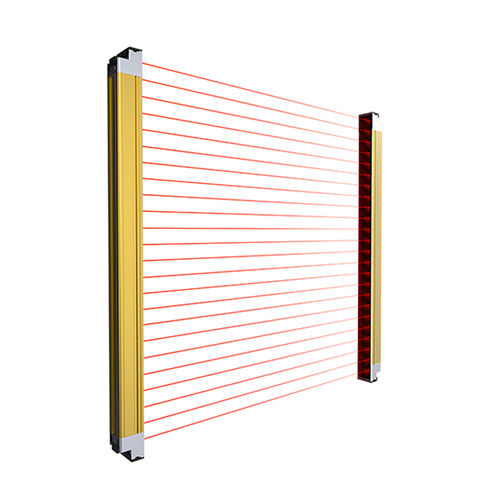

Type 2 safety light curtain CA90-T0312DP2-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Min.: 0.1 m
(0'03" )Max.: 3 m
(9'10" )
Description
Product overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Features / Specification summary
- Product type: Safety light curtain
- Detection range: 0.1–7 m
- Detection principle: Through-beam
- Output: PNP NO
- Supply voltage: DC 24V
- Protection rating: IP65
Technical specifications
- Product type: Safety type
- Detection range: 0.1–7 m
- Detection principle: Through-beam
- Cable length: 0.5 m
- Special feature: Sunlight resistant
- Synchronization: RS485 synchronization
- Beam pitch: 32 mm
- Number of beams: 44
- Protective height: 1400 mm
- Accessories: Manual, certificate, mounting brackets, mounting screws
- Materials: Housing: aluminum alloy; Filter: PMMA; End cap: PC; Plugs: SUS304; Cable: PVC
Mechanical / Electrical parameters
- Output: PNP NO
- Supply voltage: DC 24V
- Protection rating: IP65
- Connection type: Relay type
- Signal type: Discrete (switch) signal
- Operating mode: Light ON / Dark ON
- Mounting: Side mounting
- Indicator: Lit during reset, flashing during test
- Protection circuits: Output short-circuit protection, output reverse-polarity protection, power reverse-polarity protection
- Residual voltage: Residual voltage < 2V (excluding cable extension effects); allowable capacitive load 2.2µF; leakage current < 1mA
- Load current: < 300 mA
- Power consumption: Emitter < 4W, Receiver < 5W
- Insulation resistance: ≥ 20 MΩ (measured with DC 500V megohmmeter)
- Leakage current: < 1 mA
- Shock resistance: 100 m/s², 1000 shocks in X, Y, Z directions
- Dielectric strength: AC1000V 50/60Hz 1 min between charged parts and housing
- Vibration resistance: 10–55 Hz, amplitude 0.7 mm, 20 cycles in X, Y, Z directions
- External input: External input can stop the emitter from emitting light
Operating environment
- Humidity: Operating/storage 35–95% RH (no condensation)
- Illumination at receiver: < 10000 lx
Features / Specification summary
- Model: CSS32-T0744DP1
- Series: CSS series light curtains
- Detection range: 0.1–7 m
- Beam pitch: 32 mm
- Number of beams: 44
- Protective height: 1400 mm
- Cable length: 0.5 m
- Synchronization: RS485
- Output: PNP NO
- Power: DC 24V
- Protection rating: IP65
- Materials: Housing aluminum alloy; Filter PMMA; End cap PC; Plug SUS304; Cable PVC
