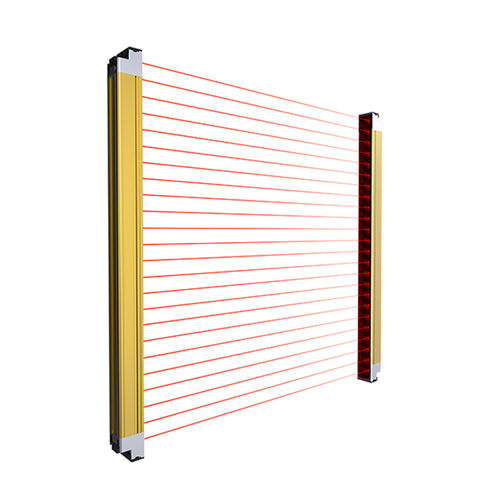

Type 2 safety light curtain CA10-T0368DP1multibeamthrough-beamimpact-resistant
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65, impact-resistant, vibration-resistant
- Operating range
Max.: 3 m
(9'10" )Min.: 0.1 m
(0'03" )
Description
Product series
Overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Materials
Accessories
Key specifications
- CSS series light curtain
Overview
- Product type: Safety
- Detection range: 0.1-7 m
- Detection principle: Through-beam
- Output type: PNP NO
- Supply voltage: DC 24 V
- Protection rating: IP65
Technical specifications
- Cable length: 0.5 m
- Special feature: Sunlight resistant
- Synchronization: RS485 synchronization
- Beam pitch: 32 mm
- Number of beams: 44
- Protected height: 1400 mm
- Included accessories: Manual, certificate, mounting brackets, mounting screws
Mechanical / Electrical parameters
- Output type: PNP NO
- Supply voltage: DC 24 V
- Protection rating: IP65
- Connection type: Relay/intermediate
- Signal type: Discrete
- Operating modes: Light ON / Dark ON
- Mounting: Side mounting
- Indicator: Lit on reset, flashing during test
- Protection circuits: Output short-circuit protection, output reverse-connection protection, power reverse-connection protection
- Residual voltage: Residual voltage <2 V (excluding cable extension effects), allowable capacitive load 2.2 μF, leakage current <1 mA
- Load current: <300 mA
- Power consumption: Emitter <4 W, Receiver <5 W
- Insulation resistance: >20 MΩ (measured with DC 500 V megger)
- Leakage current: <1 mA
- Impact resistance: 100 m/s², 1000 shocks each in X, Y, Z directions
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between charged parts and housing
- Vibration resistance: 10-55 Hz, amplitude 0.7 mm, 20 cycles each in X, Y, Z directions
- External input: External input to stop emitter illumination
Operating environment
- Operating/storage humidity: 35-95% RH (no condensation)
- Receiver illuminance: <10000 lx
Materials
- Housing: Aluminum alloy
- Optical filter: PMMA
- End cap: PC
- Plugs: SUS304
- Cable: PVC
Accessories
- Manual
- Certificate
- Mounting brackets
- Mounting screws
Key specifications
- Model: CSS32-T0744DP1 (CSS series)
- Detection range: 0.1-7 m
- Beam pitch: 32 mm, Number of beams: 44
- Protected height: 1400 mm
- Output: PNP NO, Signal type: Discrete
- Power: DC 24 V
- Protection rating: IP65
- Synchronization: RS485
- Cable length: 0.5 m
- Operating humidity: 35-95% RH (no condensation)
