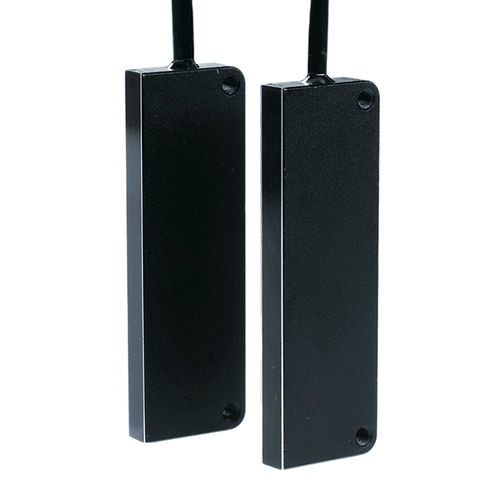

Fiber optic sensor head CX2-T50QL

Fiber optic sensor head - CX2-T50QL - CHANKO SENSOR
Fiber optic sensor head - CX2-T50QL - CHANKO SENSOR
Add to favorites
Compare this product
Go to the CHANKO SENSOR website for more information

Description

Product overview
  • Series: CX2 fiber optic series
  • Model: CX2-T50QL
  • Product type: Area type
  • Form factor: Rectangular


Main performance
  • Detection distance: 0–1000 mm
  • Light emission: Linear
  • Minimum detectable object: Ø2.0 mm
  • Detection principle: Through-beam


Mechanical / electrical parameters
  • Dimensions (L×W×H): 57×19×6 mm
  • Cable length: 2 m
  • Connection: Fiber optic connector
  • Cable bend radius: R5 mm
  • Material: Metal


Operating environment
  • Operating temperature: -55 °C to 70 °C


Dimensions drawing
  • See CX2 dimension drawing on the product page under the "Dimensions" tab.


Recommended applications
  • 3C electronics manufacturing
  • Automated parking systems
  • Logistics and warehousing


Technical specifications
  • Product type: Area type
  • Detection distance: 0–1000 mm
  • Form factor: Rectangular
  • Detection principle: Through-beam
  • Dimensions: 57×19×6 mm
  • Cable length: 2 m
  • Light emission: Linear
  • Minimum detectable object: Ø2.0 mm
  • Material: Metal
  • Connection: Fiber optic connector
  • Cable bend radius: R5 mm
  • Operating temperature: -55 °C to 70 °C
