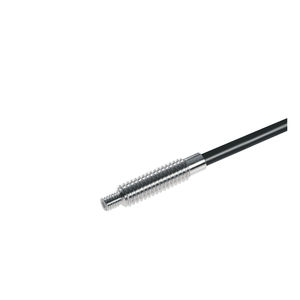

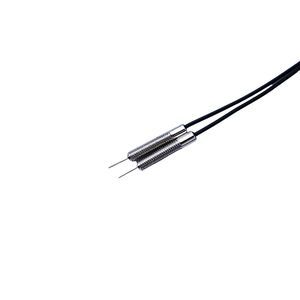

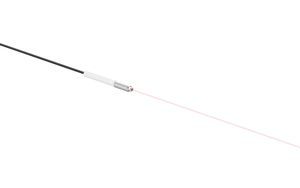

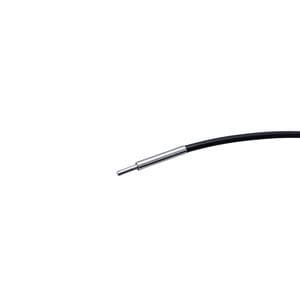

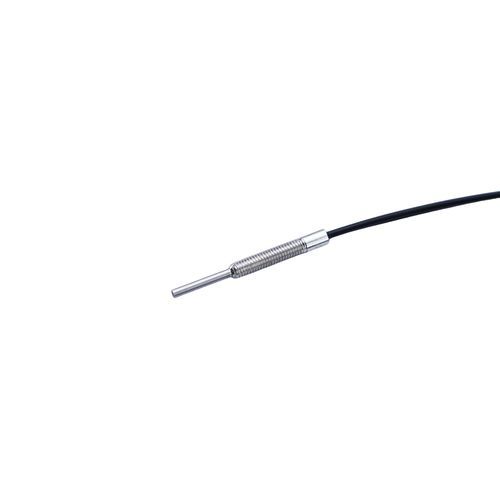

Optical data cable CX2-D3FL-C/1.5-10coaxialstraight
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- coaxial
- Configuration
- straight
- Temperature
Min.: -40 °C
(-40 °F)Max.: 75 °C
(167 °F)- Length
2 m
(6'06" )
Description
Product name
Key features
Mechanical / Electrical parameters
Operating environment
Recommended applications
Technical specifications
- CX2-D3FL-C/1.5-10 (CX2 series fiber optic cable)
Key features
- Type: Coaxial
- Detection distance: 0–140 mm
- Shape: Needle-tube
- Detection principle: Diffuse reflective
- Thread size: M3
- Connection: Fiber optic connector
- Cable length: 2 m
- Light emission: Straight
- Minimum detectable diameter: Φ0.03 mm
- Accessories: Nut, washer
- Material: Metal
Mechanical / Electrical parameters
- Connection: Fiber optic connector
- Cable bending radius: R5
Operating environment
- Operating temperature: -40°C to 75°C
Recommended applications
- 3C electronics manufacturing
- Automated parking systems
- Logistics and warehousing
Technical specifications
- Series: CX2
- Model: CX2-D3FL-C/1.5-10
- Type: Coaxial
- Detection distance: 0–140 mm
- Detection principle: Diffuse reflective
- Shape: Needle-tube
- Thread: M3
- Cable length: 2 m
- Light emission: Straight
- Minimum detectable size: Φ0.03 mm
- Connection: Fiber optic connector
- Cable bending radius: R5
- Material: Metal
- Accessories: Nut, washer
- Operating temperature: -40°C to 75°C
