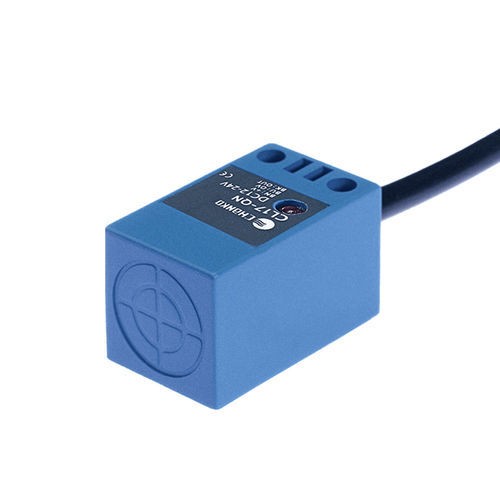

Inductive proximity sensor CL17-QN5DN1squarewith semiconductor outputwith switching function
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- square
- Output signal
- with switching function, NPN, with semiconductor output
- Electrical connection
- bare wires
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- non-flush
- Material
- plastic, PVC
- Protection level
- IP67
- Other characteristics
- 3-wire
- Length
30 mm
(1.18 in)- Width
17 mm
(0.67 in)- Measuring range
0.5 cm
(0.2 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Main specifications
Mechanical / Electrical
Operating environment
Recommended applications
Technical characteristics
- Product name: CL17 series inductive proximity sensor
- Model: CL17-QN5DN1
- Type: Standard
- Sensing distance: 5 mm
- Shape: Square
- Detection principle: Inductive
- Dimensions: 17×17×30 mm
- Output: NPN NO
Main specifications
- Cable length: 2 m (molded cable)
- Sensing direction: Frontal
- Response frequency: 500 Hz
- Response time: 1 ms
- Detectable targets: Metal
- Accessories: Inspection certificate
- Hysteresis: <10% of sensing distance
- Standard test target: Iron 17×17×1 mm
- Temperature drift: Within ±10% of sensing distance across -25 to +70°C (reference +23°C)
- Materials: Housing heat-resistant ABS; cable PVC
Mechanical / Electrical
- Output: NPN NO
- Supply voltage: DC 12–24 V
- Wiring: 3-wire DC
- Ingress protection: IP67
- Connection: Molded cable
- Signal type: Switching
- Operating mode: Normally open (NO)
- Mounting: Non-embedded
- Current consumption: <15 mA
- Indicator: Red output LED
- Protection circuits: Short-circuit and surge protection
- Voltage influence: Within ±1% sensing distance change for ±15% supply variation
- Load current: <100 mA
- Insulation resistance: >50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², X/Y/Z 3 shocks
- Dielectric strength: AC 1000 V 50/60 Hz 1 min
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, X/Y/Z 2 h
- Weight: Approx. 58 g
Operating environment
- Ambient temperature: -25 to +70°C
Recommended applications
- Electronics (3C) manufacturing
- Automated parking systems
- Logistics and warehousing
Technical characteristics
- Series: CL17
- Sensing distance: 5 mm
- Principle: Inductive
- Dimensions: 17×17×30 mm
- Cable: 2 m molded cable
- Output: NPN NO switching signal
- Supply: DC 12–24 V, 3-wire
- IP rating: IP67
- Response time / frequency: 1 ms / 500 Hz
- Target: Metal (standard: iron 17×17×1 mm)
- Materials: Heat-resistant ABS housing, PVC cable
- Operating temperature: -25 to +70°C
- Weight: ~58 g
