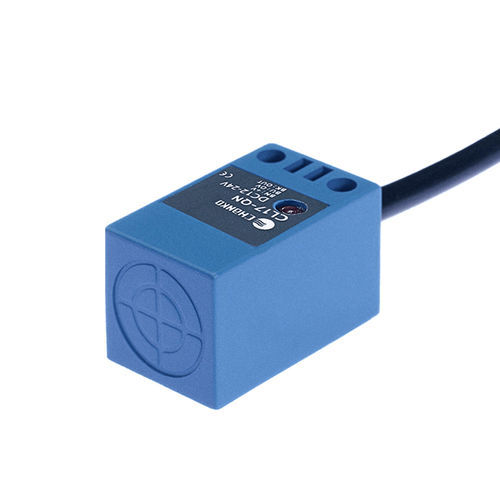

Inductive proximity sensor CL17-QN5DN1squareNPNnon-flush
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- square
- Output signal
- NPN
- Mounting
- non-flush
- Material
- plastic, PVC
- Other characteristics
- 3-wire
- Length
30 mm
(1.18 in)- Width
17 mm
(0.67 in)- Measuring range
0.5 cm
(0.2 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Recommended applications
Specifications / technical summary
- Series: CL17 inductive proximity sensors
- Type: Standard square inductive sensor
- Sensing distance: 5 mm
- Dimensions: 17×17×30 mm
- Output: NPN normally open (NO)
Technical specifications
- Cable length: 2 m (moulded cable)
- Sensing direction: frontal
- Response frequency: 500 Hz
- Response time: 1 ms
- Detectable targets: metallic objects (standard target: iron 17×17×1 mm)
- Hysteresis: <10% of sensing distance
- Temperature drift: within ±10% over -25 to +70 °C (ref. +23 °C)
- Materials: housing heat-resistant ABS; cable PVC
- Accessories: inspection certificate
Mechanical / electrical parameters
- Supply voltage: DC 12–24 V
- Wiring: DC three-wire
- Protection rating: IP67
- Connection: moulded cable
- Signal type: switching
- Switching mode: normally open
- Mounting: non-embedded
- Operating current: <15 mA
- Indicator: red output LED
- Protection circuits: short-circuit and power surge protection
- Voltage influence: <±1% change in sensing distance within ±15% supply variation
- Load current: <100 mA
- Insulation resistance: >50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², X/Y/Z 3 times
- Dielectric strength: AC 1000 V 50/60 Hz 1 min
- Vibration resistance: 10–55 Hz double amplitude 1.5 mm, X/Y/Z 2 h
- Weight: approx. 58 g
Operating environment
- Operating temperature: -25 to +70 °C
Recommended applications
- 3C electronics manufacturing
- Automated parking systems
- Logistics and warehouse automation
Specifications / technical summary
- Model: CL17-QN5DN1
- Series: CL17
- Sensing distance: 5 mm
- Output: NPN NO
- Supply: DC 12–24 V
- Protection: IP67
- Dimensions: 17×17×30 mm
- Cable: moulded 2 m
- Response: 1 ms / 500 Hz
- Material: housing ABS, cable PVC
- Weight: approx. 58 g
