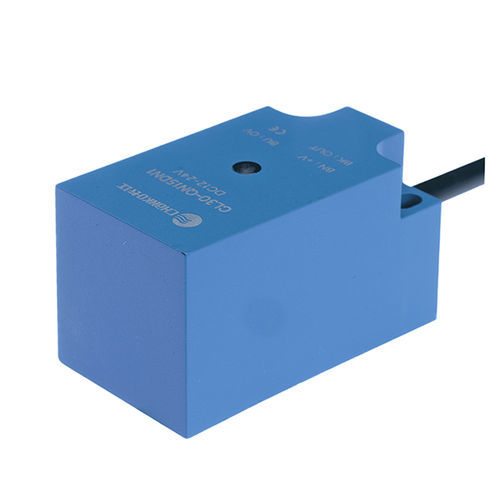

Inductive proximity sensor CL30-QN10DN1squareNPNDC
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- square
- Output signal
- NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- non-flush
- Material
- plastic, PVC
- Other characteristics
- non-contact, 3-wire
- Length
57 mm
(2.24 in)- Width
30 mm
(1.18 in)- Measuring range
1 cm
(0.39 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product name and series
Overview
Technical specifications
Operating environment
Detection & accessories
Documentation
Materials
- Model: CL30-QN10DN1
- Series: CL30 series inductive proximity sensors
Overview
- Type: standard inductive proximity sensor
- Detection distance: 10 mm
- Shape: square
- Principle: inductive (metal detection)
- Dimensions: 30×30×57 mm
- Output: NPN normally open (NPN NO)
- Cable length: 2 m
- Detection direction: frontal
- Response frequency: 500 Hz
- Response time: 1 ms
Technical specifications
- Supply voltage: DC 12–24 V (3-wire DC)
- Connection: molded cable
- Protection rating: IP67
- Signal type: discrete switch
- Mounting: non-flush
- Current consumption: <15 mA
- Indicator: red output LED
- Protection circuits: short-circuit and surge protection
- Voltage influence: detection change within ±1% for ±15% supply variation
- Max load current: <100 mA
- Insulation resistance: >50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², 3 times per X/Y/Z
- Dielectric strength: AC 1000 V 50/60 Hz for 1 min
- Vibration resistance: 10–55 Hz double amplitude 1.5 mm, 2 h per axis
- Weight: approx. 136 g
Operating environment
- Ambient temperature: -25 to +70 °C
- Temperature drift: within ±10% over -25 to +70 °C (ref. +23 °C)
Detection & accessories
- Detectable objects: metallic
- Standard test object: iron 30×30×1 mm
- Hysteresis: <10% of detection distance
- Accessories: conformity certificate
Documentation
- Control output and dimension drawings available on the product page (download)
- Downloadable manual (PDF) and 3D model (STP) available for installation and design
Materials
- Housing: heat-resistant ABS
- Cable: PVC
