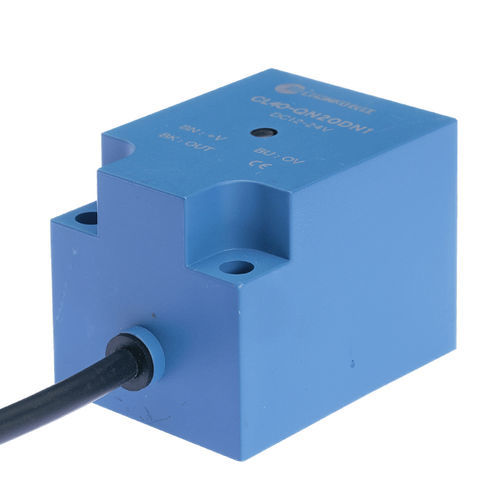

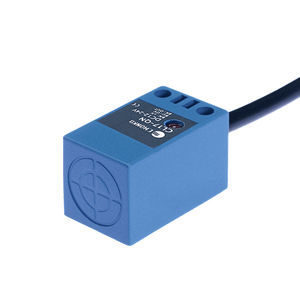

Inductive proximity sensor CL40-QN20DN1squarewith switching functionNPN
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- square
- Output signal
- with switching function, NPN
- Supply voltage
- DC, 24VDC, 12VDC
- Mounting
- non-flush
- Material
- plastic, PVC
- Protection level
- IP67
- Other characteristics
- 3-wire
- Length
57 mm
(2.24 in)- Width
40 mm
(1.57 in)- Measuring range
2 cm
(0.79 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Product overview
Main specifications
Mechanical / Electrical
Operating environment
Accessories
Technical specifications
- Model: CL40-QN20DN1
- Series: CL40 proximity sensor series
- Detection principle: Inductive (for metal targets)
- Housing shape: Square
- Dimensions: 40 × 40 × 57 mm
Main specifications
- Product type: Standard
- Detection distance: 20 mm
- Cable length: 2 m
- Detection direction: Frontal
- Operating frequency: 160 Hz
- Response time: 3 ms
- Standard target: Iron 60 × 60 × 1 mm
- Hysteresis: ≤ 10% of detection distance
- Temperature drift: Within ±10% vs +23 °C in range -25 to +70 °C
Mechanical / Electrical
- Output: NPN NO (normally open)
- Supply voltage: DC 12–24 V
- Power supply: 3-wire DC
- Connection: Molded cable
- Signal type: Switching
- Mounting: Non-flush (non-embedded)
- Protection class: IP67
- Current consumption: < 15 mA
- Load current: < 100 mA
- Indicator: Red output LED
- Protection circuits: Short-circuit and surge protection
- Voltage influence: ±1% detection distance change within ±15% supply variation
- Insulation resistance: ≥ 50 MΩ (DC 500 V)
- Shock resistance: 500 m/s², 3 times each axis X, Y, Z
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h each axis
- Weight: approx. 198 g
- Materials: Housing heat-resistant ABS; cable PVC
Operating environment
- Operating temperature: -25 to +70 °C
- Target objects: Metallic objects
Accessories
- Certificate
Technical specifications
- Model: CL40-QN20DN1
- Type: Standard
- Detection principle: Inductive
- Detection distance: 20 mm
- Dimensions: 40 × 40 × 57 mm
- Cable length: 2 m
- Output: NPN NO
- Supply voltage: DC 12–24 V
- Current consumption: <15 mA
- Max load current: <100 mA
- Protection: IP67
- Response time: 3 ms
- Operating temperature: -25 to +70 °C
- Materials: Heat-resistant ABS housing, PVC cable
- Weight: approx. 198 g
