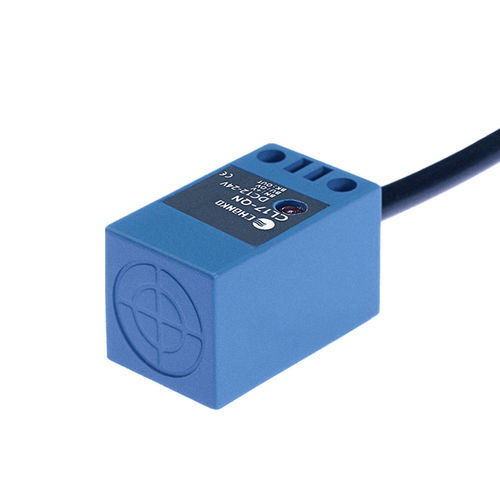

Inductive proximity sensor CL17-QN8DN1squareNPNnon-flush
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- square
- Output signal
- NPN
- Mounting
- non-flush
- Protection level
- IP67
- Other characteristics
- 3-wire
- Length
34 mm
(1.34 in)- Width
17 mm
(0.67 in)- Measuring range
0.8 cm
(0.31 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Product name
Key features
Technical specifications
Mechanical & electrical parameters
Operating environment
- Model: CL17-QN8DN1
- Series: CL17 series inductive proximity sensor
Key features
- Type: Standard
- Detection distance: 8 mm
- Shape: Square
- Principle: Inductive
- Dimensions: 17×17×34 mm
- Output: NPN, Normally Open (NO)
- Cable length: 2 m (moulded)
- IP rating: IP67
Technical specifications
- Sensing target: Metal (standard test piece: iron 24×24×1 mm)
- Hysteresis/Repeatability: < 10% of sensing distance
- Temperature influence: within ±10% over -25 to +70 °C (reference +23 °C)
- Response frequency: 500 Hz
- Response time: 1 ms
Mechanical & electrical parameters
- Power supply: DC 12–24 V, 3-wire DC
- Current consumption: < 15 mA
- Max load current: < 100 mA
- Protection: Short-circuit and surge protection
- Insulation resistance: > 50 MΩ (DC 500 V)
- Dielectric strength: AC 1000 V, 1 min
- Shock resistance: 500 m/s², 3 shocks in X/Y/Z
- Vibration resistance: 10–55 Hz, 1.5 mm double amplitude, 2 h each axis
- Indicator: Red output LED
- Connection: Moulded cable
- Mounting: Non-flush (non-embedded)
- Weight: approx. 58 g
Operating environment
- Operating temperature: -25 to +70 °C
